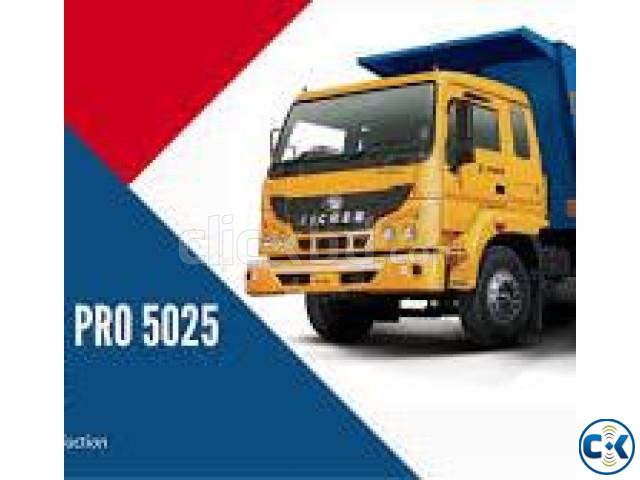

Eicher PRO 5025 Tripper

EICHER PRO 5025T
Eicher 10 Wheel Dump Truck
Eicher Dump Truck
The 25 Ton GVW Tipper.
TECHNICAL SPECIFICATION
SPECIVICATIONS
EICHER PRO 5025T
Eicher Tripper
GVW
25000kgs
Engine
7000cc
Max. Power
180HP @ 2500rpm
Max. torque
685 Nm @ 1500rpm
Clutch type
coil spring push type with booster assisted
Clutch dia
380mm
Gear Box
ZF 110TD (8 Forward, 1 Crawler € 1 Reverse) with cable operated gear shifting mechanism.
Gear Ratio
1st (Crawler) :12.73, Reverse : 12.04
Rear Axle
Maritor makes Banjo type Axle.
Rear Axle Ratio/FDR
6.833
Front Axle
Meritor makes Banjo type Axle.
Chassis Type
Rolled C-Channel straight Frame, 285x76x7 mm.
Service Brakes
Dual circuit, full S-cam Air.
Suspension Front
Semi-elliptical leaf spring w/o Anti-roll Bar.
Pension Rear
Hendrickson’s Bogie suspension with 11 leaves (27mm)
Cabin
Hydraulic Tilt-able Sleeper Cabin
Steering
Tilt and Telescopic power Steering.
Grade ability
43%
Max Speed
70 KMPH
Fuel Tank
220 Ltr
Electrical System
24 V
Battery
150 AMP
Tyre Size
Front-Std. 10X20-16PR (Rib Pattern)
Rear € Spare-Std. 10x20-16PR (Lung Pattern.
Wheel Rim size
7.5x20
TCD
15.8m
Ground clearance
252 mm
Wheel base
4000 mm
Body size
16 Cum
Body Dimension (mm)
4580x2330x1350
Body Sheet Thickness
Floor 6mm, side Wall € Conopy Tailgate 4mm.
ULW
1260Kgs
