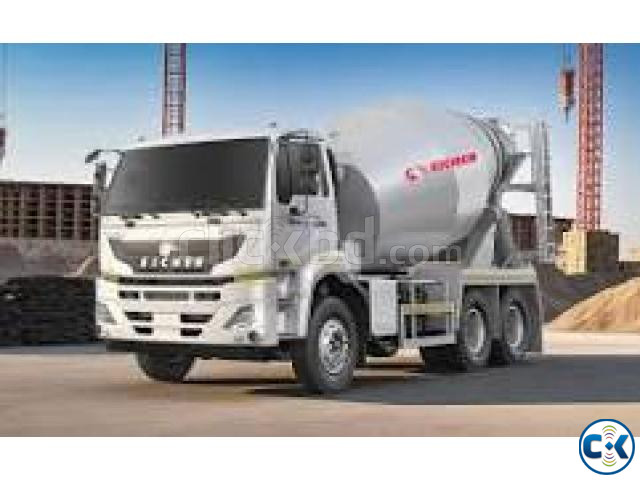

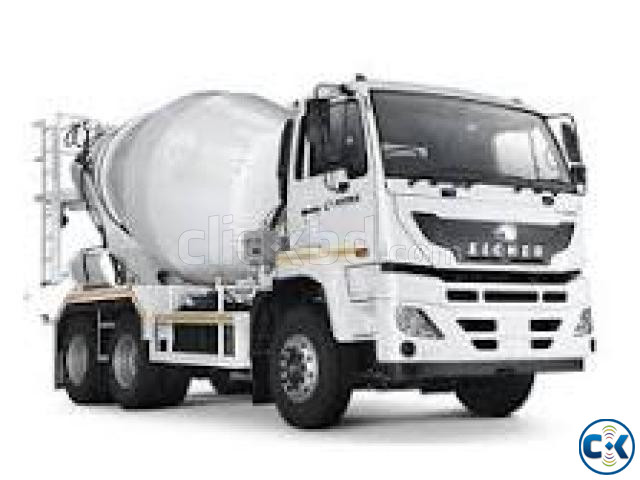

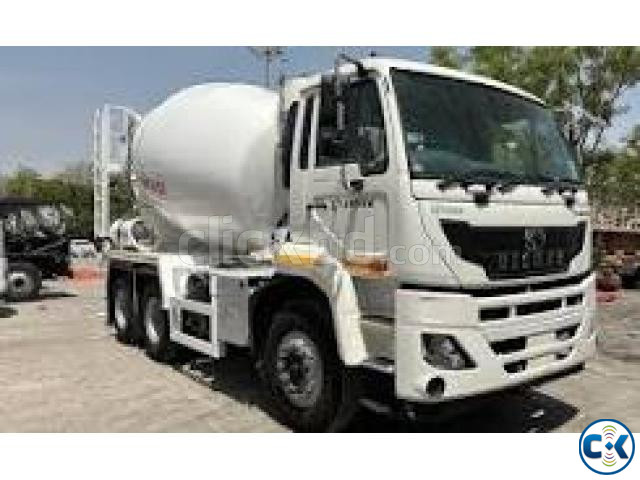

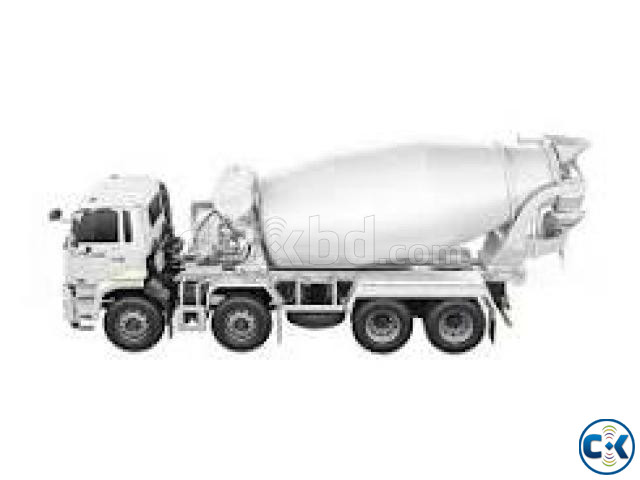

Eicher 5025 RMC Chassis

Eicher RMC
আমাদের সাথে যোগাযোগ : 01315-091752 / 01813-334829) আইশারচেসিসএরবিষয়েজানতে, ধন্যবাদ।
Eicher PRO 6025
60.25 Truck Chassis
Eicher 6025 RMC Chassis
Eicher Truck Chassis
Eicher RMC Chassis
EICHER READY MIX
Eicher Ready Mix Cement
GVW 25000 kg 25000 kg
Engine Type MDEP5 - BS3, SAE2, 225 CC Air compressor , With Engine PTO MDEP5 - BS3, SAE2, 225 CC Air compressor , With Engine PTO
Max Power 210HP @ 2200rpm 210HP @ 2200rpm
Max Torque 825Nm @ 1200~1600rpm 825Nm @ 1200~1600rpm
Clutch Type Booster Assisted, Push Type Booster Assisted, Push Type
Clutch Diameter 395 mm 395 mm
Gear Box ET90S6 ( 6 Forward 1 Reverse) Without PTO ET90S6 ( 6 Forward 1 Reverse) Without PTO
Chassis Type Domex650 ladder type joggle frame, 285 x 76 x 7 mm FUPD & RUPD Domex650 ladder type
joggle frame, 285 x 76 x 7 mm FUPD & RUPD
Suspension Front: Parabolic leaf spring with 4 leaves Rear: Semi elliptic bellcrank with 14 mm leaves Hydraulic double acting telescopic type at front only Front: Parabolic leaf spring with 4 leaves Rear: Semi elliptic bellcrank with 14 mm leaves Hydraulic double acting telescopic type at front only
Steering Tilt and Telescopic hyadraulic power steering Tilt and Telescopic hyadraulic power steering
Max Speed 79 kmph 79 kmph
Electrical 2 x24 V, 150 Ah 2 x24 V, 150 Ah
Fuel Tank 220 litres, Rectangular Polymer Tank 220 litres, Rectangular Polymer Tank
Tyre 10.00 x 20- 16PR 10.00 x 20- 16PR
Rear Axle Meritor Tandem-Fully floating Banjo Meritor Tandem-Fully floating Banjo
Gradiability(%) 27.5% with engine PTO, 28.6% without engine PTO operation 27.5% with engine PTO, 28.6% without engine PTO operation
