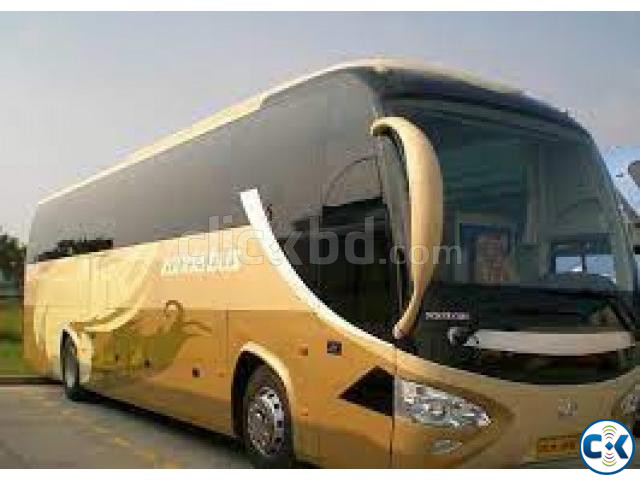

Ashok Leyland 12M Bus Chassis

Asking Price:
Tk. 42,50,000

Member since 05 Jul 2019
Gulshan, Dhaka
Face-to-face transaction
Not offered
Do not pay before verifying
    Category: Everything Else > Cars & Vehicles > Heavy Vehicles > Trucks > Ashok Leyland 12M Bus Chassis

    DESCRIPTION ( Ashok Leyland 12M Bus Chassis )

    Ashok Leyland Bus Chassis
    Engine ‘H’-series 6 cylinder 5.76L BS3 Diesel Engine with Turbocharger & Intercooler
    Emission compliance BS3 with in-line fuel pump BS3 with Common Rail fuel injection
    Maximum Power 180 HP (132 kW) @ 2400 rpm 225 HP (165 kW) @ 2500 rpm
    Maximum Torque 670 Nm @ 1300-1600 rpm 800 Nm @ 1400-1900 rpm
    Clutch 15” dia. Single plate dry type with hydraulic actuation
    Transmission ZF 6 Speed forward Synchromesh with Over Drive
    Rear Axle Fully floating single-speed hypoid gear
    Front Axle Forged ‘I’-section Reverse Eliot type steerable
    Frame Ladder type chassis with bolted cross member
    Suspension Front- Weveller suspension Air suspension with shock absorber Rear -Air suspension Rear- Air suspension at front & rear
    Stabilizer Anti-roll bar at front & rear
    Steering Integral power steering RHD
    Brakes Service Brake-Duel circuit full air ‘s’ cam with ABS Parking Brake- Spring actuated at rear only Exhaust Brake- Butterfly type pneumatically operated Auxiliary Brake- Electro Magnetic Retarder
    Brake lining 7” at front & 8” at Rear
    AC option Direct Drive AC
    Electricals Battery- 2x 12V 200AH | Alternator capacity- 85A
    Tyres 295/80R22.5 - 16PR Tubeless Radial
    Fuel tank 350 Liters
    Seating Layout 61+D (2x2) standard | 49+D (2x2) adjustable | 45+D (2x2) luxury
    Variants Standard Semi-low floor Flat floor (JanBus)
    GVW 16,200 kg.
    Major dimension
    Wheel base 6200 mm
    Front overhang 2026 mm
    Rear overhang 3474 mm
    Overall length 12000 mm
    Overall width 2590 mm
    Turning Circle dia. 22 M
    চেসিস নগদ মূল্যে বিশেষ ছাড়।
    সুদে স্বল্প ডাউন পেমেন্টে ৫বছর/৬০মাস কিস্তি এছাড়াও
    দ্রুত রেজিষ্ট্রেশন সুবিধা এবং ফ্রি সাভিস ওয়ারেন্টি রয়েছে।
    দেশব্যাপি আমাদের সার্ভিস সেন্টার আছে।
    আমাদের চেসিস/পিক আপ সম্পর্কে আরো জানতে চাইলে সরাসরি আমাদের সাথে যোগাযোগ (০১৭১৫-১৭৪৭৯৮/ 01796-940928) করুন, ধন্যবাদ।
    ****কিস্তি ফেইল / ধরা গাড়ি নেই। **** ****কিস্তি ফেইল / ধরা গাড়ি নেই। ****
