Core i5 Proccessor H55 Motherboard For Sale

Tk 16,000
Highlights
  • New/Used: Used
  • Brand: Intel/Gigabyte
  • Type: Proc/Mobo
Seller info
Sold by:
azim61
Member since:
23 Mar 2009
Location:
Dhaka Mirpur
Safety tips:
Don’t pay in advance
Meet in a safe & public place
Description

DESCRIPTION for Core i5 Proccessor H55 Motherboard For Sale price in Bangladesh

Hi, I wanna sell my Intel Core i5 Proccessor and Gigabyte GA-H55M-S2H Motherboard.
Which has been used for 7 months. and in Running condition.
Just wanna upgrade my PC with AMD processor+mobo, thats the only reason for sale.
Price is Slightly negotiable.....
Feel free to contact me anytime for info. :)

Details:

1. PROCESSOR

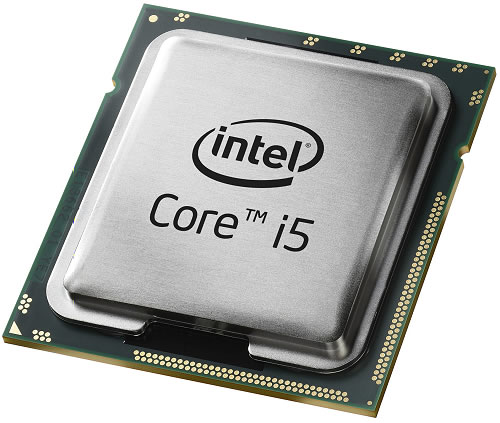

Intel® Core™ i5-661 Processor
(4M Cache, 3.33 GHz)
SPECIFICATIONS
All
Essentials
Memory Specifications
Graphics Specifications
Expansion Options
Package Specifications
Advanced Technologies
COMPATIBLE PRODUCTS
BLOCK DIAGRAMS
ORDERING / SSPECS / STEPPINGS
Specifications
Essentials
Status Launched
Launch Date Q1'10
Processor Number i5-661
# of Cores 2
# of Threads 4
Clock Speed 3.33 GHz
Max Turbo Frequency 3.6 GHz
Intel® Smart Cache 4 MB
Bus/Core Ratio 25
DMI 2.5 GT/s
Instruction Set 64-bit
Instruction Set Extensions SSE4.2
Embedded Options Available No
Lithography 32 nm
Max TDP 87 W
VID Voltage Range 0.6500V-1.4000V
Recommended Customer Price $177 - $196
Memory Specifications
Max Memory Size (dependent on memory type) 16 GB
Memory Types DDR3-1066/1333
# of Memory Channels 2
Max Memory Bandwidth 21 GB/s
Physical Address Extensions 36-bit
Graphics Specifications
Integrated Graphics Yes
Graphics Base Frequency 900 MHz
Intel® Flexible Display Interface (Intel® FDI) Yes
Intel® Clear Video HD Technology Yes
Dual Display Capable Yes
Expansion Options
PCI Express Revision 2.0
PCI Express Configurations 1x16, 2x8
# of PCI Express Ports 1
Package Specifications
Max CPU Configuration 1
TCASE 69.8°C
Package Size 37.5mm x 37.5mm
Processing Die Size 81 mm2
# of Processing Die Transistors 382 million
Graphics and IMC Lithography 45 nm
Graphics and IMC Die Size 114 mm2
# of Graphics and IMC Die Transistors 177 million
Sockets Supported FCLGA1156
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Turbo Boost Technology Yes
Intel® vPro Technology No
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Trusted Execution Technology No
AES New Instructions Yes
Intel® 64 Yes
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Intel® Demand Based Switching No
Thermal Monitoring Technologies No
Execute Disable Bit Yes


2. MOTHERBOARD


CPU
Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/ Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® H55 Express Chipset
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 2200+/1800/1600/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
* Go to GIGABYTE's website for the latest memory support list.
Onboard Graphics Integrated in the Chipset:
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port(Note 2) (Note 4)
Audio
Realtek ALC888B codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN
1 x RTL8111D chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)
2 x PCI slots
Multi-Graphics Technology
Support for ATI CrossFireX™ technology(Note 6)
Storage Interface Chipset:
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
JMicron JMB368 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Chipset:
Integrated in the Chipset
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector Connectors
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard or PS/2 mouse port
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port (Note 2) (Note 4)
1 x optical S/PDIF Out connector
8 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8720 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 7)
BIOS
2 x 64 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Dynamic Energy Saver™ 2
Support for Smart 6™
Support for Auto Green
Support for Q-Share
Bundle Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft® Windows 7/Vista/XP
Form Factor
MicroATX Form Factor; 24.4cm x 21.0cm
