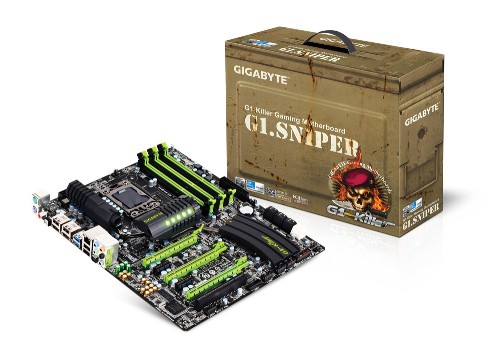

Gigabyte Sniper G1- Killer X58 Gaming Motherboard

CPU

Support for an Intel® Core™ i7 series processor in the LGA1366 package ( Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

QPI

4.8GT/s, 6.4GT/s

Chipset

North Bridge: Intel® X58 Express Chipset
South Bridge: Intel® ICH10R

Memory

6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
3/Dual channel memory architecture
Support for DDR3 2200/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Audio

1 x Creative CA20K2 chip
Support for Dolby® Digital Live and DTS™ Connect
Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

1 x Bigfoot Killer E2100 chip (10/100/1000 Mbit)

Expansion Slots

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16_2 slot. The PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8 is populated.
(The PCIEX16_1, PCIEX16_2, and PCIEX8 slots conform to PCI Express 2.0 standard.)
2 x PCI Express x1 slots
1 x PCI slot

Multi-Graphics Technology

Support for 2-Way/3-Way ATI CrossFireX™/NVIDIA SLI technology

Storage Interface South Bridge:

6 x SATA 3Gb/s connectors (SATA2_0~SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Marvell 88SE9182 chip:

2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0 and RAID 1

JMicron JMB362 chip:

2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel, supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD

USB South Bridge:

Up to 12 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 6 via the USB brackets connected to the internal USB headers)

1 x Renesas D720200 chip and 2 x VLI VL810 hubs:

Up to 4 USB 3.0/2.0 ports (2 on the back panel, 2 via the USB bracket connected to the internal USB header)
* The USB 2.0 signals of the USB 3.0/2.0 ports on the back panel are from the South Bridge.

Internal I/O Connectors

1 x 24-pin ATX main power connecto
1 x 8-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
3 x fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x clearing CMOS jumper
1 x heatsink LED power connector

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x optical S/PDIF Out connector
1 x coaxial S/PDIF Out connector
1 x CPU overclocking button
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
2 x eSATA/USB Combo connectors
1 x RJ-45 port
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)

I/O Controller

iTE IT8720 chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS ™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Dynamic Energy Saver™ 2
Support for Smart 6™
Support for Auto Green
Support for eXtreme Hard Drive (X.H.D)
Support for ON/OFF Charge
Support for Cloud OC
Support for Q-Share

Bundle Software

Norton Internet Security (OEM version)

Operating System

Support for Microsoft® Windows® 7/Vista/XP

Form Factor

ATX Form Factor; 30.5cm x 26.4cm
