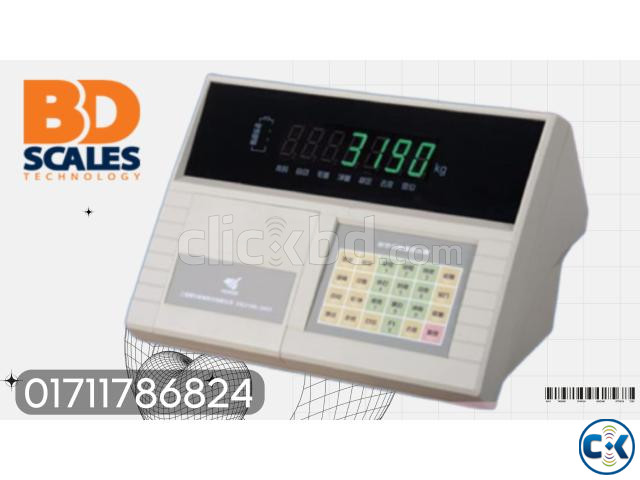

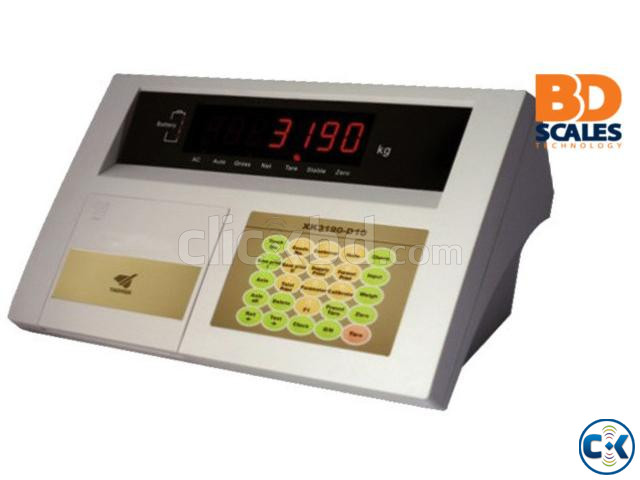

Digital Indicator XK3190 D10

DESCRIPTION for Digital Indicator XK3190 D10 price in Bangladesh


Item Specifications

01. Product Code :D10
02. Warranty Period One Year
03. Model: XK 3190-D10
04.Stock: In Stock
05. Origin: China (Jiangsu)
06. Discount: None
07.Accessories: Available
08.Brand: YAOHUA
Weighing indicator XK3190-D10q adopts high precision ∑-Δ A/D conversion technology, widely applied in electronic floor scale、electronic truck scale、static railway scale and so on alike static weighing system equipped with 1~8 load cell.

Features:
◆AC/DC power supply
◆User-defined printing content and format:
User-defined printing format, and be able to connect with serial printing interface and thermal printer
◆Reliable shield and anti-jamming:

Adopts hardware for shielding and reduces external-jamming and damage of interface



Standard function

◆High precision A/D conversion with readability 1/30000
◆Auto change division among 3 different weighing ranges set up by user
◆Non-linearity correction, calibration tolerance correction
◆Password management and time power off function
◆Able to set up print function for auto/manual; no condition/under condition; daily/sorted statistics report printing
◆Weighing data save/check/delete/ protection in case of power off
◆Able to edit English letter referring to a numeric-letter table (like ASCII table), able to download English letter through PC;
◆Standard RS232 communication interface with selectable baud rate and communication method(RS422/RS485 optional)
◆Standard scoreboard interface with current loop(20mA)method and standard parallel printer interface
◆Able to print goods name, customer name, company name and notes in English
◆Standard and user-defined printing format in horizontal, vertical and record format etc
◆Able to save 1501 weighing records, 1500 truck records consisting of truck ID and corresponding tare weight; 201 goods records consisting of goods ID, goods name; 100 customer records consisting of customer ID, customer name, note info
◆Able to print any parameter of indicator for saving and referring
◆Hardware detection and voltage of load cell output displaying function


Technical parameter
◆A/D conversion method: ∑-Δ
◆A/D conversion speed: 200 times/sec
◆Input signal range:-30mV～30mV
◆Max. connection number of load cell: 8 at 350 ohm or 16 at 700 ohm
◆Load cell connection mode: 6 wire, auto compensation for distance≤50 meters
◆Verified counts: 3000
◆Readability:30,000
◆Max.internal reaolution:600,000
◆Display: 7 bits LED display 7 status indications,3 　power indicators
◆Clock: real clock without effect when power off
◆Scoreboard interface (Standard)
Serially sending by 20mA current loop with baud rate 600,transmiaaion distance≤2000 meters
◆Communication interface( RS232 C standard; RS422 optional)
Serial communication interface, with selectable baud rate by continuous sending method or on command method
◆Print interface (Standard)
Parallel sending, able to connect with wide-line printer model KX-P1121、KX-P1131、LQ300K; micro printer for model D10P
◆ Power supply: AC 187~242V,49~51Hz; DC 6V/10Ah battery
