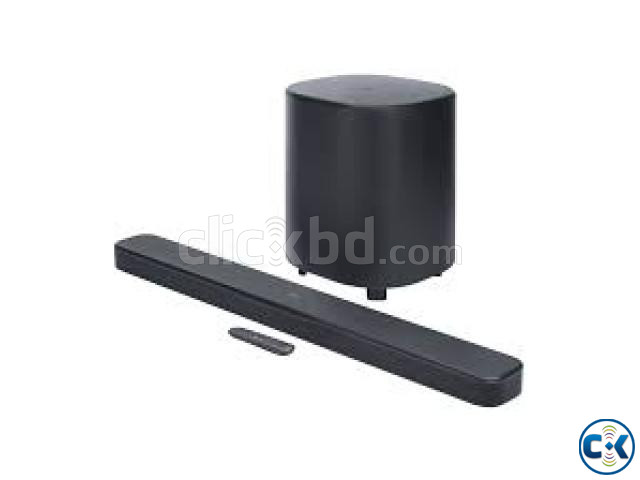

JBL Bar 500MK2 750W 5.1-Channel Dolby Atmos Soundbar System

Channel Configuration

5.1-Channel (Virtual Surround)

Midrange Drivers

5x 1.7 x 3.1" / 42 x 80 mm Elliptical Cone

High-Frequency Drivers

4x 0.75" / 1.91 cm Tweeter

Subwoofer Driver

1x 10" / 25.4 cm

Subwoofer Amplifier Output

300 W RMS

Subwoofer Inputs/Outputs

Wireless

Inputs

1x HDMI - Audio/Video

1x Optical TOSLINK - Audio

Outputs

1x HDMI - eARC/Video

Wireless Audio Protocols

AirPlay, Bluetooth, Chromecast built-in, Roon Ready, Spotify Connect, TIDAL Connect, Wi-Fi

Wireless

Wi-Fi 6 (802.11ax) / Bluetooth 5.3

Audio Decoding

Dolby Atmos, Dolby Digital

HDMI Compliance

eARC

Wall Mountable

Yes (with Included Hardware)

Soundbar

Channel Configuration

5.1-Channel (Virtual Surround)

Enclosure Type

Ported

Midrange Drivers

5x 1.7 x 3.1" / 42 x 80 mm Elliptical Cone

High-Frequency Drivers

4x 0.75" / 1.91 cm Tweeter

Amplifier Output

450 W Peak

Frequency Response

40 Hz to 20 kHz (System)

Total Harmonic Distortion (THD)

1%

Subwoofer

Enclosure Type

Bass-Reflex

Subwoofer Driver

1x 10" / 25.4 cm

Subwoofer Amplifier Output

300 W RMS

Total Harmonic Distortion (THD)

1%

Subwoofer Inputs/Outputs

Wireless

Connectivity

Inputs

1x HDMI - Audio/Video

1x Optical TOSLINK - Audio

Outputs

1x HDMI - eARC/Video

USB I/O

1x USB-A (Unspecified Interface)

Ethernet I/O

No

Wireless Audio Protocols

AirPlay, Bluetooth, Chromecast built-in, Roon Ready, Spotify Connect, TIDAL Connect, Wi-Fi

Wireless

Wi-Fi 6 (802.11ax) / Bluetooth 5.3

Bluetooth

5.3

NFC

No

Bluetooth Profiles

A2DP 1.3, AVRCP 1.5

Mobile App Compatible

Yes: Android & iOS

Functionality: Adjust Settings, Setup

Compatibility

Audio Decoding

Dolby Atmos, Dolby Digital

HDMI Compliance

eARC

HDR Support

Yes: HDR10/Dolby Vision

HDCP Support

Yes: Version 2.3

Supported File Formats

MP3

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Environmental Resistance

No

Operating Conditions

32 to 113°F / 0 to 45°C

Material of Construction

Plastic

Wall Mountable

Yes (with Included Hardware)

Recommended Screen Size

43" and Up

Dimensions

37 x 2 x 4.1" / 940 x 50.5 x 104 mm (Soundbar)

12.8 x 15.7 x 12.8" / 325 x 400 x 325 mm (Subwoofer)

Weight

6.4 lb / 2.9 kg (Soundbar)

17.9 lb / 8.1 kg (Subwoofer)

Packaging Info

Package Weight

37 lb

Box Dimensions (LxWxH)

40 x 19 x 15.5"
