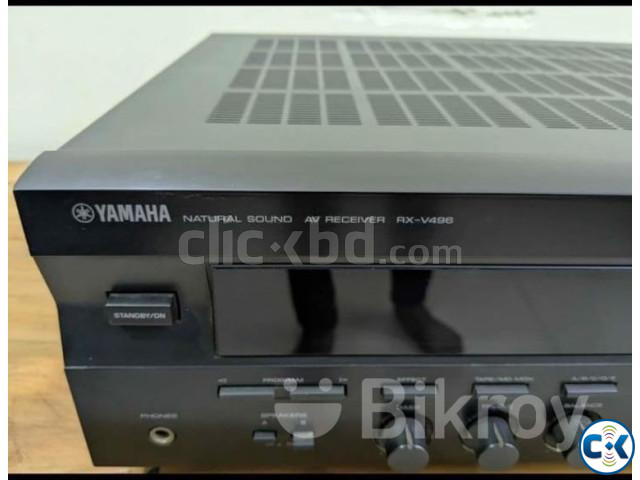

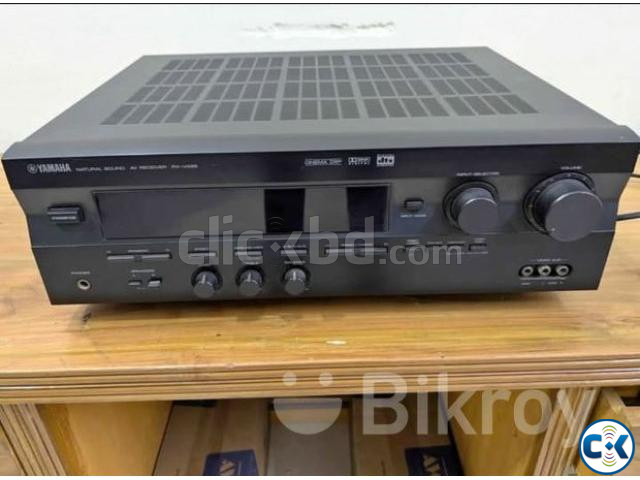

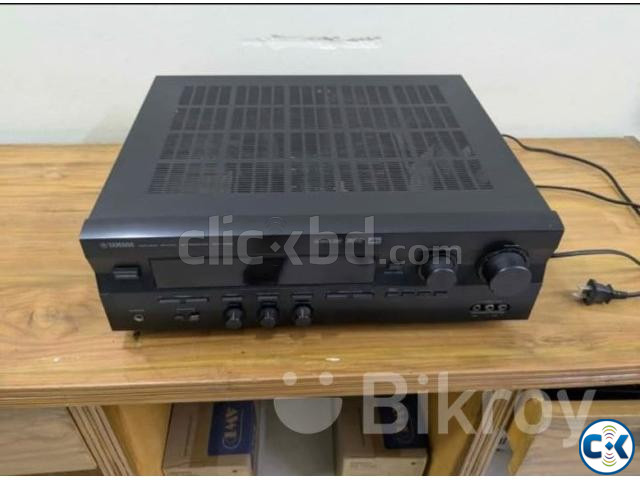

Yamaha Rx-v496 5.1 Channel Natural Sound Av Receiver

This is a Yamaha RX-V496 5.1 Channel Natural Sound AV Receiver.



It incorporate both Dolby Digital and DTS. Providing an ample 70 watts to each of the five channels and offering a subwoofer output with a low-pass filter and a speaker-impedance selector, the RX-V496 also supplies an input for an external decoder, should you prefer an outboard processor. All speaker terminals are banana-plug-compatible, while the main speaker terminals are large binding posts.



Around back are two optical digital inputs for DVD/LD and satellite/DTV, plus one coaxial connection. S-video inputs aplenty are ready for DVD, satellite, and VCR, with S-video outs for the VCR and the monitor. There are also composite video connections for all of the above and satellite/DTV, as well as left/right composite video jacks up front for video auxiliary. The Yamaha YSS-918 application-specific integrated circuit performs Dolby Digital, Pro Logic, Tri-Field, and Cinema DSP duties, with 20 DSP modes for movies and music. The convenient "set menu" also allows you to tweak the settings of the DD, DTS, and center delay.



It works flawlessly. All inputs, outputs, knobs, switches, etc. work perfectly, and the Display is bright and vivid.



Cosmetic-wise, it has just a few minor scratches here and there, but nothing major.





OVERVIEW



AUDIO


Response Bandwidth 10 - 50000 Hz


Signal-To-Noise Ratio 96 dB


Total Harmonic Distortion 0.06 %


POWER DEVICE


Frequency Required 50/60 Hz


Power Consumption Operational 220 Watt


Power Outlets 2 AC outlets


Type power supply


AUDIO SYSTEM


Type AV receiver


Subcategory AV components


Functions AV receiver


Sound Output Mode Surround Sound


Built-in Decoders DTS decoder, Dolby Digital, Dolby Pro Logic


Surround System Class 5.1 channel


Digital Sound Processor (DSP) Yes


Additional Features A-B speaker switch, digital signal format auto detection / auto switching


/Bass Control: Yes


Treble Control :Yes


Built-in Clock/ sleep timer


CD


CD type none



TUNER


Response Bandwidth 20 Hz


Signal-To-Noise Ratio 69 dB


Total Harmonic Distortion mono: 0.1%, stereo: 0.2%


BUILT-IN DISPLAY


Type fluorescent


MISCELLANEOUS


Timer sleep, wake


Color black


Color Category silver


Body Material aluminum


AMPLIFIER


Input Impedance 47 Ohm


Input Sensitivity 150 mV


AMPLIFIER OUTPUT DETAILS


Output Power / Channel 100 Watt, 120 Watt, 140 Watt, 160 Watt


Output Impedance / Channel 2 Ohm, 4 Ohm, 6 Ohm, 8 Ohm


Frequency Response 20 - 20000 Hz


Channel Qty 5


RADIO


Tuner Type digital


Tuner Bands AM/FM


Tuner Frequency Range AM: 530 - 1710 kHz, FM: 87.5 - 108 MHz


Tuning Display fluorescent display


Preset Station Qty 40


Auto Preset Memory Yes


CASSETTE SYSTEM


None


DVD


None



Supported Devices:


CD player, DVD player, LD player, MD player, TV, VCR, cable box, cassette deck, satellite TV system


AUDIO SPECIFICATIONS:


Type Amplifier, Radio tuner


Frequency Response : 10 - 50000 Hz, 20 - 15000 Hz


Signal-To-Noise Ratio : 69dB, 96 dB


MD SYSTEM


None


POWER


Form Factor y integrated


Power Outlets:


2 AC outlets


BATTERY / POWER


Type : Power supply


CONNECTIONS


Type 5.1 channel audio line-in, AM antenna, composite video/audio input, composite video/audio output, front speakers output, headphones, monitor output, rear speakers output, subwoofer output, turntable audio input, S-Video input, S-Video output, SPDIF input, audio line-in, audio line-out, center speaker output


Qty 1, 2, 3, 4


Connector Type 4 pin mini-DIN, RCA x 3, RCA x 6, TOSLINK, banana/spade x 2, click-fit x 2, phone stereo 6.3 mm, RCA, RCA x 2


Connector Location front, rear






DIMENSIONS & WEIGHT


Width :17.1 in


Depth : 15.4 in


Height : 5.9 in


Weight : 22 lb
