800KG /10 Person Otistec Brand Lift Price in BD

Otistec Capacity and Speed:

• Load Capacity: 800 kg (suitable for up to 10 persons)
• Operating Speed: Options range from 1.0 m/s to 2.5 m/s

Car Dimensions:

• Car Size (W x D x H): 1400 mm x 1300 mm x 2400 mm

Shaft Requirements:

• Minimum Shaft Size (W x D): 2000 mm x 2000 mm
• Overhead Height: 4500 mm
• Maximum Rise: 120 meters

Drive and Control System:

• Drive Type: Gearless traction machine utilizing permanent magnet synchronous technology for energy efficiency and reduced noise
• Control System: VVVF (Variable Voltage Variable Frequency) inverter driving system, ensuring smooth and precise operation

Otistec Door System:

• Door Operation: Center opening or side opening options
• Door Features: Advanced VVVF control technology for smooth and quiet door movements; equipped with a door load detector for enhanced safety

Materials and finishes:

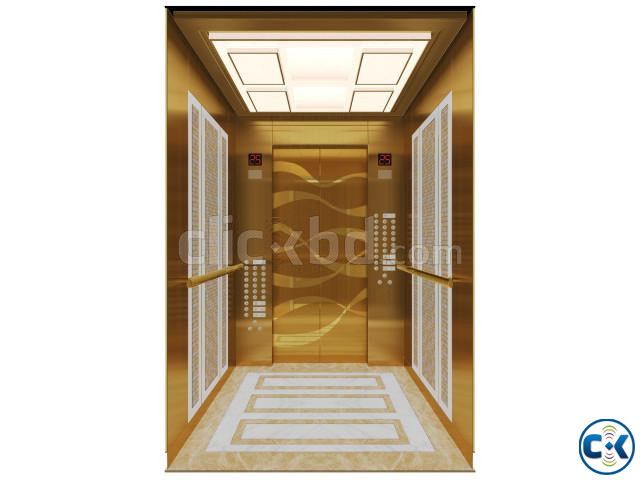

• Car Wall: Options include rose gold mirror etching stainless steel
• Flooring: PVC or marble finishes available
• Ceiling: Steel plate with baking finish

Optional Features:

• Additional Functions: Automatic Rescue Device (ARD), IC card access, remote monitoring capabilities
