1000KG/13 PerFuji Elevator Elegant Design and Spacious Cabin

1000KG Fuji Elevator Elegant Design and Spacious Cabin

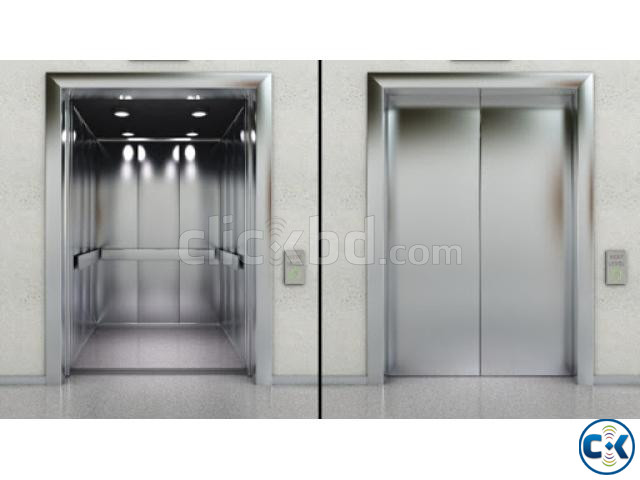

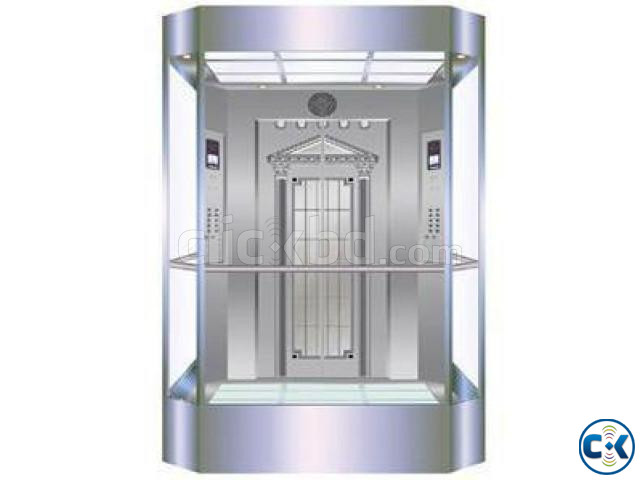

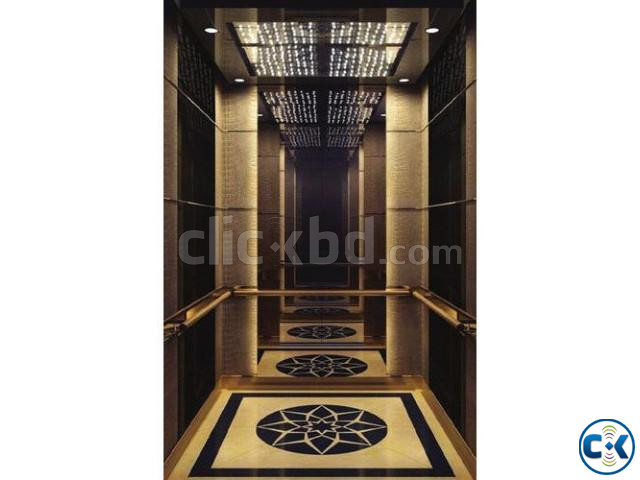

The cabin features a stainless steel finish with options for mirrors and LED lighting, creating a stylish and welcoming atmosphere. It offers ample space, accommodating up to 13 persons comfortably, making it ideal for high-traffic areas.

Advanced Control System
Equipped with a microprocessor-based VVVF drive, the elevator provides precise control, smoother acceleration, and energy savings. The LCD/LED display panels and voice announcements enhance user experience and accessibility.

1. General Information
Brand: Fuji
Model: Passenger Elevator
Capacity: 1000 KG (13 Persons)
Application: Residential, Commercial, and Office Buildings
Speed: 1.0 m/s, 1.5 m/s, 1.75 m/s, 2.0 m/s (Depending on Model)
Drive Type: Gearless Traction Machine
Control System: Microprocessor-Based VVVF (Variable Voltage Variable Frequency) Drive
2. Technical Specifications
Cabin Details:

Material: Stainless Steel (Hairline Finish/Etched Finish)
Lighting: LED Ceiling Lights with Energy-Saving Feature
Handrails: Stainless Steel (Optional)
Flooring: Marble, PVC, or Vinyl Flooring Options
Mirror: Full-Length or Half-Length Mirror (Optional)
Doors:

Type: Automatic Sliding Doors
Material: Stainless Steel or Painted Steel
Opening System: VVVF Drive Door Operator
Door Width: 800mm–1100mm (Adjustable Based on Cabin Size)
Control Panel:

Operation Panel: Digital Touch or Button-Based (LED Display)
Display Type: LCD/LED with Floor Position Indicator
Voice Announcement: Floor Arrival Notification
Call Buttons: Braille Integrated for Accessibility
Motor and Drive System:

Machine Type: Permanent Magnet Synchronous Gearless Traction Machine
Rated Power: 5.5–7.5 kW (Depending on Model)
Rope Type: High-Tensile Steel Wire Rope or Flat Belt System
Safety Features:

Overload Sensor: Prevents Overloading and Alerts Users
Emergency Brakes: Electromagnetic Brakes for Safety Stop
Automatic Rescue Device (ARD): Ensures Return to Nearest Floor During Power Failure
Fire-Rated Doors: Available as Optional for Fire Safety Compliance
Safety Edge Protection: Detects Obstructions During Door Closing
Over-Speed Governor: Stops Elevator During Excessive Speed
Buffer System: Oil Buffers in Pit Area for Smooth Stopping
3. Electrical Requirements
Voltage: 380V–415V, 3-Phase, 50/60Hz
Power Supply: Uninterrupted Power Supply (UPS) Optional for Backup
Lighting Voltage: 24V DC
4. Environment and Design
Temperature Range: 0–40°C Operating Temperature
Humidity Tolerance: Up to 90% RH (Non-Condensing)
Noise Level: ≤ 55 dB for Smooth and Silent Operation
Eco-Friendly Features: Energy Regenerative System (Optional)
5. Certifications
Standards: ISO 9001, ISO 14001, CE, EN 81-20/50 Compliance
Safety Codes: GB7588 and EN81 for Lift Safety Regulations
6. Dimensions
Cabin Size:
Width: 1600 mm
Depth: 1400 mm
Height: 2300 mm
Door Size:
Width: 900 mm
Height: 2100 mm
Pit Depth: 1500 mm (Standard)
Overhead Height: 4200 mm (Standard)
7. Optional Features
Smart Card Access Control: Restricted Entry Based on Authorization
Touchless Operation: App-Based or Gesture-Controlled Call Panels
CCTV Surveillance: Integrated Security Cameras
Air Purifier and Fan: Provides Fresh Air Circulation
Music System: Soft Background Music Option
8. Warranty and Support
Warranty: 12–24 Months Standard Warranty
Maintenance Support: AMC (Annual Maintenance Contract) Available
Spare Parts: Readily Available for Quick Replacement
