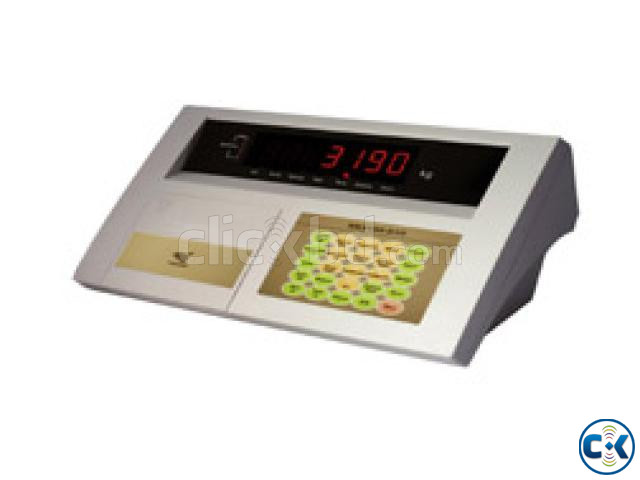

Digital LED Display Indicator- XK3190-D10

Assalamu Alaikum. Welcome everyone from BD Scale. Afforadable Price, High Quality Industrial Truck Scale.

Packaging & delivery

Selling Units:

Single item

Single package size:

50X27X22 cm

Single gross weight:

21.000 kg

Picture Example:

Lead time:

Quantity(pieces) 1 - 100 101 - 200 >200

Lead time (days) 10 15 To be negotiated

Weighing indicator XK3190-A9+ adopts high precision ∑-Δ A/D conversion technology, widely applied in electronic floor scale,electronic truck scale and so on alike static weighing system equipped with 1~8 load cell.

Feature:

Compatible with all functions of model XK3190-A9;

∑-Δ high precision A/D conversion method, able to process input signal from -16mV to 18mV

Good consistency, no need to re-calibrate a scale if change the former indicator, high precision

DC power socket with anti-connect and anti-short circuit protection;

With strong anti-disturbance function

Standard function

AC/DC power supply, standard chargeable battery

7-bits 0.8 inch LED display, 3-level battery indications

Able to setup zero-tracking range, zero(auto/manual) range

With 2-point calibration correction function, 2 compensation calibration methods

Able to save 1001 weighing records, 1000 truck records consisting of truck ID and corresponding tare weight, 201 records of goods

Able to print across and upright weighing bill

Able to print different statistical reports

Standard RS232 communication interface(RS422/RS485 optional)

Standard scoreboard interface with current loop

Standard parallel print interface

Able to connect assigned thermal printer

XK3190-A9+P with built in printer

Technical parameter

A/D conversion method: ∑-Δ

Input signal range:-16mV~18mV

A/D conversion speed: 10times/sec.

A/D conversion code: 1 million code

Load cell excitation: DC 5V

Max. connection number of load cell: 8 at 350 ohm/16 at 700 ohm

Load cell connection mode: 6 wire, auto compensation for long distance

Division: 1/2/5/10/20/50/100 optional

Clock: real clock without effect when power off

Transimission: current loop/RS 232 signal

Baud rate:600

Transimission distance:≤30 meters

Serial communication:interface

Transimission method:RS232/RS422(optional)/RS485(optional)

Baund rate:600/1200/2400/4800/9600(optional)

Transmission distance:RS232:≤30 meters;RS422/RS485:≤1200 meters

Print interface

Standard parallel output interface

Built-in micro-printer(A9+P)

Data storage:1000 truck records consisting of truck ID and corresponding tare weight 201cargo ID.1001 weighting records

Power supply:AC 220V(-15%-+10%);50Hz(-2%-+2%)

DC 6V/10Ah External battery rechargeable.

Bangladesh Digital Scale Technology

 198, Box Culvert Road, Fokirapool, Motijheel , Dhaka, Bangladesh.

  Contact:-01711-786824, 01919-786824,www.bdscale.com
