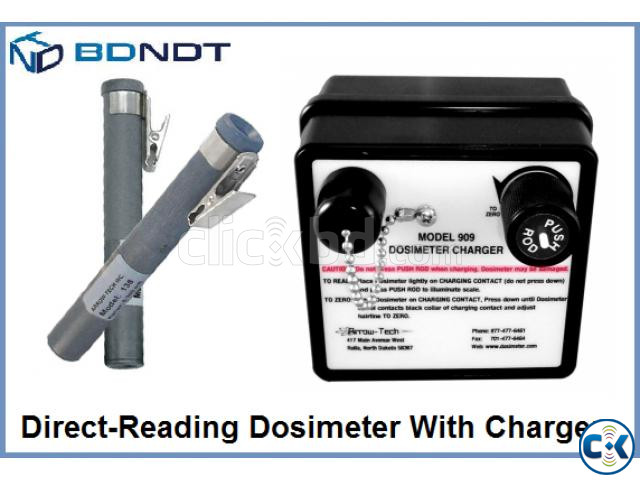

Pocket Dosimeter With Charger Price in BD

Arrow-Tech, Inc. recommends a yearly calibration of the Direct-Reading Dosimeter which is generally consistent with good health physics practices. More frequent calibration may be necessary should the user's license require a shorter calibration interval.

Licensed from the U.S. Government under Patent No. 5,426,305



Specifications:

Radiation Detected:  Gamma and X-Ray from 16 keV to 6 MeV

Range: 0-200mR

Detector: Fiber-Electrometer mounted in an Electrically Conductive Plastic Ion Chamber

Detector Housing: Very low permeability plastics - Hermetically-Sealed

Accuracy: +/– 10% of true exposure

Rate Response: Dose rate independent for Gamma and X-Ray

Electrical Leakage: Less than 1.0% of full scale for 24 hours at 50 C

Temperature Range: -20 degrees C to +50 degrees C

Relative Humidity:  Up to 90%

Dimensions:  4.5” (12.4 cm) Length X .6“ (1.5 cm) Diameter

Weight:  1.0 oz. (25 grams)

Finish:  Natural Matte Gray with a Metal Clip

Warranty:  Two Year Limited Warranty

Shelf Life:  20 Years

Specifications: ANSI N13.5 and ANSI N322-1997




Model 909B Dosimeter Charger

The Model 909B Charger LED Reading Light reduces re-zeroing time and effort by eliminating the need to remove the dosimeter from the Charger for reading. Simply view the scale while the dosimeter is resting lightly on the charger contact after re-zeroing. Reading in the same orientation as charging also minimizes the effect that gravitational induced fiber movement has on dosimeter accuracy and precision. The Model 909B Charger charging contact is spring-loaded and has a positive mechanical stop. This design feature makes it virtually impossible to damage dosimeters through excessive charging force.

Capable of charging any Direct-Reading Dosimeter
Conforms to ANSI N42.6-1980
Operates on two 1.5 V “AA” Batteries
Has the ability to “Kick” or remove all residual charge from dosimeters properly, which prevents spurious upscale fiber movement
LED Reading Light to allow for easy charging/viewing
Residual static charge removed for improved accuracy
Weight: 10.6 oz.( 302 g)
Width: 4” (102 mm)
Length: 4” (102 mm)
Height: 3.5” (89 mm)
Case: ABS Plastic
Controls: One-Turn Potentiometer
Reading: Spring-Loaded Push Rod
Power: 1.5V “AA” Batteries
Charging Voltage: 40V to 220V
Operating Temperature: 0–120F (-18–49C)
Lamp: LED
