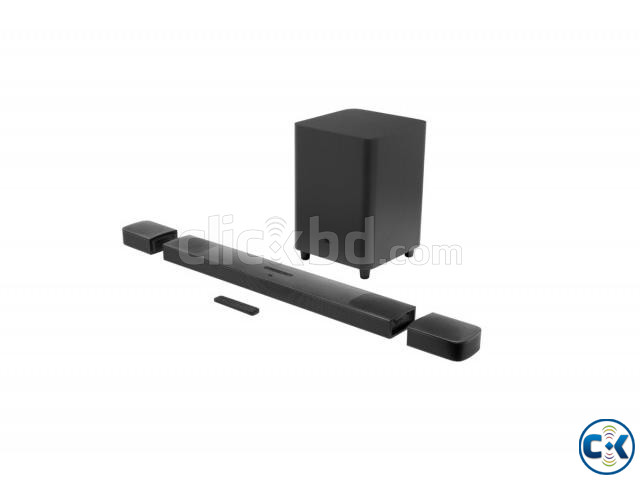

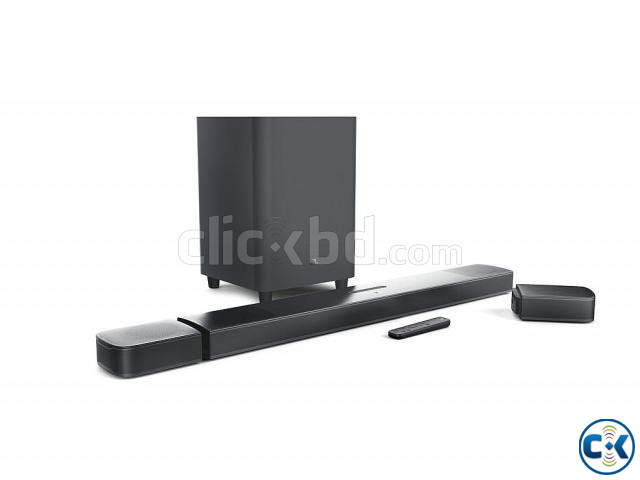

JBL 9.1 Channel Soundbar System surround speakers and Dolby

EMI Available 12 Months price 89,064/-

Cash Price = 80,000/-

Sold By : #NUE ( Nue Udoy Electronics )

Warranty Type: Brand Warranty Official

Brand: JBL

The Ultimate 3D sound experience

Upgrade your viewing or gaming experience from ordinary to extraordinary. Built-in Dolby Atmos®, DTS:X™ and four upfiring speakers bounce sound up to the ceiling back down to you for an awesome, true 3D sound experience.

Real surround sound in a second

Instantly enjoy a true, cinematic 9.1 surround experience. Simply place the two detachable surround speakers behind you. No extra wires, no extra power connections so no extra hassle.

Detachable speakers that go anywhere

Built-in batteries mean audio freedom. Place the two detachable surround speakers anywhere in your room to enjoy an incredible audio experience. After up to 10 hours of playback, simply dock them to the soundbar to recharge.

What's in the box?

• 1x Main Soundbar
• 2x Detachable wireless surround speakers
• 1x Wireless subwoofer
• Remote control with 2 x batteries
• Power cords (up to 8pcs depending on region SKUs)
• HDMI cable x1
• 2 x L-shape Wall-mount bracket (Main Bar) + 2 x U-shape Wall-mount bracket (for Surround Speakers) kit with screws
• Quick start guide
• Warranty card
• Safety sheet

Control and Connection Specifications

USB portType A

USB rating5 V/ 500 mA

Supported file formatMP3

MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate; 16 KHz - 48 KHzYes

MP3 bitrate80 kbps - 320 kbps

USB Port; (USB playback is available in US version. For other versions, USB is for Service only.)Yes

Bluetooth version4.2

Bluetooth profileA2DP V1.2/ AVRCP V1.5

Bluetooth frequency range; 2402MHz-2480MHzYes

Bluetooth Max. transmitting power13dbm  (EIRP)

Modulation TypeGFSK, π/4 DQPSK, 8DPSK

Wi-Fi networkIEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)

2.4G Wi-Fi frequency range2412 – 2472 MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi Max. transmitting power20 dBm (EIRP)

Modulation TypeDBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM

5G Wi-Fi frequency range5.15 - 5.35 GHz, 5.470-5.725 GHz, 5.725 - 5.825 GHz

5G Wi-Fi Max. transmitting power22 dBm (EIRP)

Modulation TypeQPSK, BPSK, 16QAM, 64QAM, 256QAM

5G Wireless frequency range5180.0 - 5240.0MHz (Except Europe), 5725.0 - 5825.0MHz

5G Max. transmitting power13 dBm (EIRP)

Modulation TypeQPSK

5.1.4 channelYes

Power supply100 - 240VAC, ~ 50/60Hz

Battery charge time3 hours

Total speaker power output (Max. @THD 1%)820 W

Main Soundbar output power (Max. @THD 1%)400

Surround speakers output power (Max. @THD 1%); 2 x 60WYes

Subwoofer output power (Max. @THD 1%); 300Yes

Soundbar transducer4×racetrack drivers + 2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter

Surround transducer (per piece)up-firing full-range driver + 0.75” (20mm) tweeter

Subwoofer transducer10"

Operating temperature0°C - 45°C

Standby for Soundbar (when all wireless connections are deactivated)< 0.5 W

Networked standby (Soundbar)< 6.0 W

Networked standby (Subwoofer)< 2.0 W

Time to standby<10 minutes

This equipment complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. The Soundbar unit is considered as networked equipment with high network availability (HiNA equipment and equipment with HiNA functionality) as it provides wireless network access point for two wireless Surround speakers and one wireless Subwoofer.Yes
