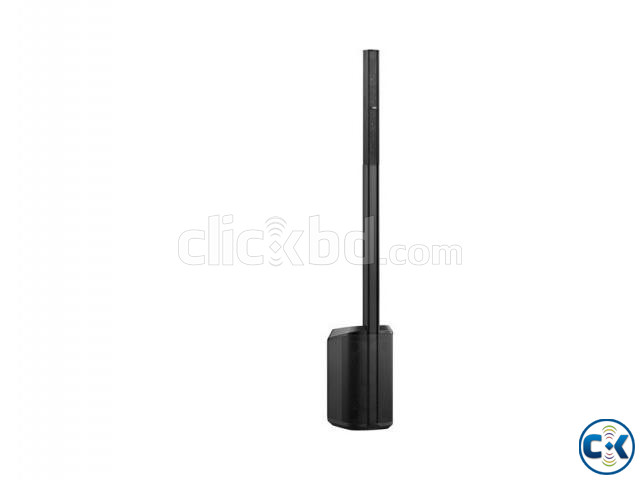

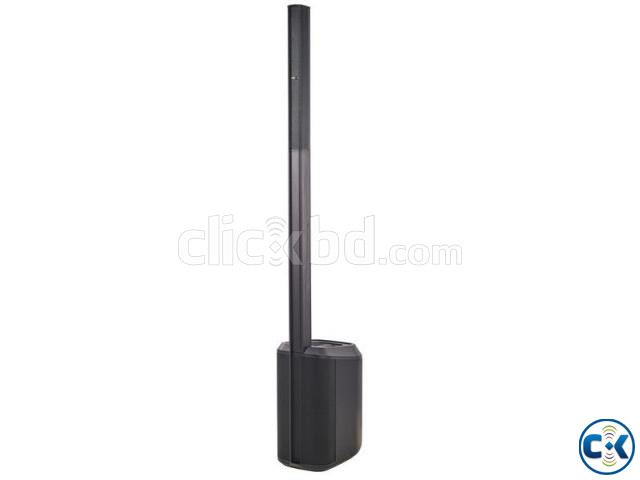

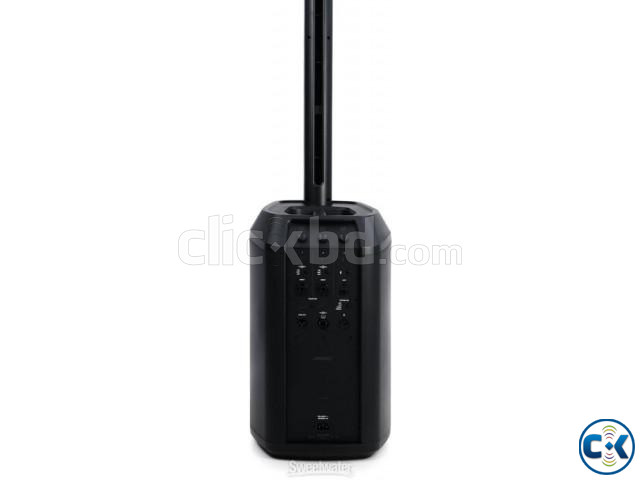

Bose L1 PRO8 Portable Line Array Speaker System with Bluetoo

Speaker Configuration 8 x Full-Range Speaker Column with Subwoofer

Number of Input Channels 3 (2 x Mono, 1 x Stereo)

Amplifier Power Rating Speakers:

1 x 60 W

Subwoofer:

1 x 240 W

Amplifier Class Class-D

Speakers

Full-Range Driver 8 x 2" / 50.8 mm Cone

Subwoofer Driver 1 x 13 x 7" / 330.2 x 177.8 mm Woofer

Magnet Neodymium

Signal Processing

Input Pad None

EQ HF Shelf

LF Shelf

Semi-Parametric EQ None

Effects Reverb

Filters None

Performance

Frequency Response 45 Hz to 20 kHz

Maximum SPL 112 dB (Continuous)

118 dB (Peak)

Coverage Angle 180° H x 20° V

Protections None

Connectivity

Audio I/O 2 x Combo XLR-1/4" 3-Pin Female Balanced Mic/Line/Hi-Z Input

1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Input

1 x 1/4" TRS Female Unbalanced Line Input

1 x XLR 3-Pin Male Balanced Line Output

Phantom Power +48 V

Network I/O None

Wireless Connectivity Bluetooth

Power

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Physical

Transport Options 1 x Handle (Top)

Dimensions 78.9 x 17.3 x 12.5" / 200.4 x 43.9 x 31.8 cm

Weight 39.8 lb / 18.1 kg

Packaging Info

Package Weight 47.5 lb

Box Dimensions (LxWxH) 52 x 27.25 x 15.75"
