Fiber Laser Marking Machine Price in BD

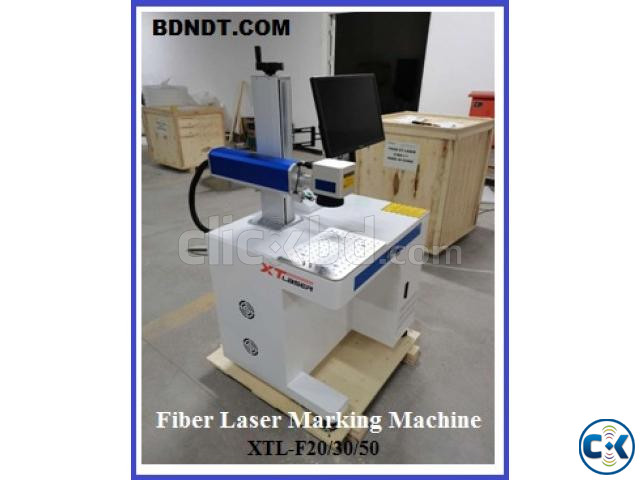

fiber laser marking machine Desktop model XTL-F20/30/50

1. Desk top fiber laser marking machine (with rotary) XTL-F20 = 310000 Taka

2. Desk top fiber laser marking machine (with rotary) XTL-F30 = 330000 Taka

3. Desk top fiber laser marking machine (with rotary) XTL-F50 = 380000 Taka

Fiber laser marking machine

Machine Mode XTL-F20/30/50
Marking Scope 110*110mm
Gross power ≤1000w
Marking speed ≤7000w
Laser power 20w/30w/50w
Power supply 220V/50HZ
Package size 90*87*105cm
Gross weigh 120kg
HS CODE 8456 1100

Contract for Purchase:
BD Trade International
Mirpur 12, Dhaka, Bangladesh
01883113100
01728780635
[email protected]
[email protected]
Delivery Time: 6-8 Weeks after PO.
Payment: 50% Advance with PO.

Remark:
1. laser source: Raycus
2. Laser head: Sino galvo
3. Control software: Original JCZ control card and Ezcad software
4. Working size:110*110mm
5. PC included
6.Rotary included
7. Pedal, protective glasses
8. 2 years warranty



Technical Parameters

Technical Indicators Name








Laser Parameters

Laser Source Raycus/IPG
Laser Wavelength 1064nm
Average Output Power 20/30/50w
With Optical Isolator bring
Modulation Frequency

Range

20kHz~80kHz




Galvanometer Parameters

Maximum Linear

Speed

7000mm/s
Resolution 0.001mm
Repeat ability ±0.003mm


Optical output characteristics

Marking Range 110*110mm/200mm*200mm
Minimum Line Width 0.01mm
Minimum Character

Height

0.2mm
Cooling

System

Cooling Method Air cooling


System property

Laser Power 0.5KW/AC220V/50Hz~60Hz (optional 110V)
Light Path Lifting

Stroke

Movements itinerary 285 mm (desktop type)
Environment

Requirement

0 ~ 35 ° C, 90% or humidity
size Equipment size 82*70*146cm
Packing size 92*80*156cm
weight Net weight 120kg
Gross weight 170kg
