Bosch CCS 900 Ultro Conference System

Contract for Purchase:
BD Trade International
Mirpur 12, Dhaka, Bangladesh
01883113100
01728780635
[email protected]

Terms and condition:
• All Price 5% Vat & 2% AIT Excluded.
• All payments will be done by Cash & cheque.
• Pay 50% advance before Purchase.

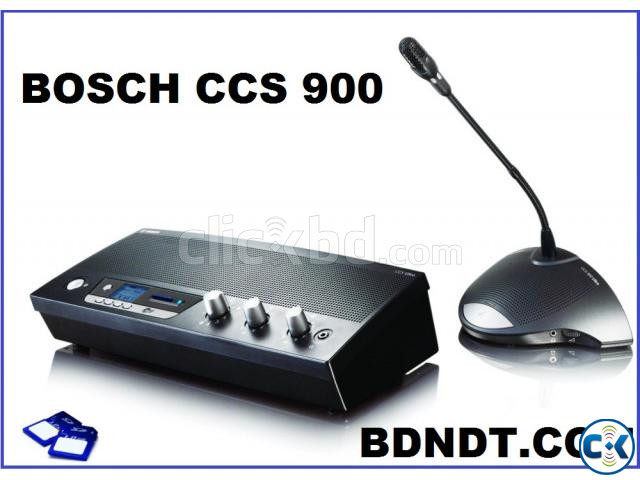

CCS 900 Ultro Conference System

A versatile and economical discussion system that brings order and convenience to small and mid-sized gatherings and conferences.

Details:

Mains voltage 100 to 240 VAC ± 10 %
Current consumption maximum 0.9 A (100 VAC) to 0.3 A (240 VAC)
DC supply to contribution units 24 V ± 1 V (current limited)
Loudspeaker volume control mute (50 dB att.) + 10 steps of 1.9 dB
Limiter threshold level to unit 10 dB above nominal level loudspeaker / headphone
Gain reduction due to number of open microphones (NOM) ÷ NOM ± 1 dB
Total harmonics

Nominal input (85 dB SPL) < 0.5
 Max. input (110 dB SPL) < 0.5
Dimensions including feet(H x W x D) 84 x 361 x 143 mm(3.4 x 14.2 x 5.6 in)
Height of feet 5.5 mm (0.22 in)
Mounting tabletop (portable or fixed)19-inch rackflush mounting
Weight 1.5 kg (3.3 lb)
Material (top) polymer
Material (base) painted metal
Color (top) charcoal (PH10736)
Color (base) black (PH80007)


CCS‑CU Control Unit:

⚫ Digital Acoustic Feedback Suppression
⚫ Discussion control without operator
⚫ Controls up to 150 contribution devices
⚫ Built-in monitor loudspeaker

Mains voltage 100 to 240 VAC ± 10 %
Current consumption maximum 0.9 A (100 VAC) to 0.3 A (240 VAC)
DC supply to contribution units 24 V ± 1 V (current limited)
Loudspeaker volume control mute (50 dB att.) + 10 steps of 1.9 dB
Limiter threshold level to unit 10 dB above nominal level loudspeaker / headphone
Gain reduction due to number of open microphones (NOM) ÷ NOM ± 1 dB
Total harmonics

Nominal input (85 dB SPL) < 0.5
Max. input (110 dB SPL) < 0.5
Dimensions including feet(H x W x D) 84 x 361 x 143 mm(3.4 x 14.2 x 5.6 in)
Height of feet 5.5 mm (0.22 in)
Mounting tabletop (portable or fixed)19-inch rackflush mounting
Weight 1.5 kg (3.3 lb)
Material (top) polymer
Material (base) painted metal
Color (top) charcoal (PH10736)
Color (base) black (PH80007)


CCS‑CMx CCS Chairman Unit:

⚫ Incorporates all functions of the CCS‑Dx CCS Delegate Units (with the exception of the Possible‑To‑Speak functionality/LED)
⚫ Priority button for chairman microphone
⚫ Temporary or permanent muting of delegate microphones
⚫ Optional chime tone facility for preceding chairman announcements
⚫ Modern, unobtrusive styling to match the CCS‑Dx CCS Delegate Units
⚫ Available with standard or extended length microphone stems

Dimensions unit without microphone (H x W x D) 71 x 220 x 140 mm (2.8 x 8.7 x 5.5 in)
Height with microphone in horizontal position 134 mm (5.3 in)
Length of microphone from mounting surface CSS‑CMS , CCS‑CML: 313 mm (12.3 in), 488 mm (19.2 in)
Weight approx. 1 kg (2.2 lb)
Mounting tabletop (portable or fixed)
Material (top) polymer
Material (base) painted metal
Color (base) charcoal (PH10736)
Color (top) charcoal (PH10736)




CCS‑Dx CCS Delegate Unit:

⚫ Unique, patent pending “Possible‑To‑Speak” indicator
⚫ Compact, attractive design
⚫ Built-in volume control for headphones
⚫ Microphone with flexible stem and light ring
⚫ Two headphone sockets
⚫ Available with standard or extended length microphone stems

Dimensions unit without microphone (H x W x D) 71 x 220 x 140 mm (2.8 x 8.7 x 5.5 in)
Height with microphone in horizontal position 134 mm (5.3 in)
Length of microphone from mounting surface CCS‑DS , CCS‑DL
313 mm (12.3 in) 488 mm (19.2 in)
Weight approx. 1 kg (2.2 lb)
Mounting tabletop (portable or fixed)
Material (top) polymer
Material (base) painted metal
Color (top) charcoal (PH10736)
Color (base) charcoal (PH10736)
Download data Sheet:

CCS900_DS_Data_sheet_enUS_27021599594393611
