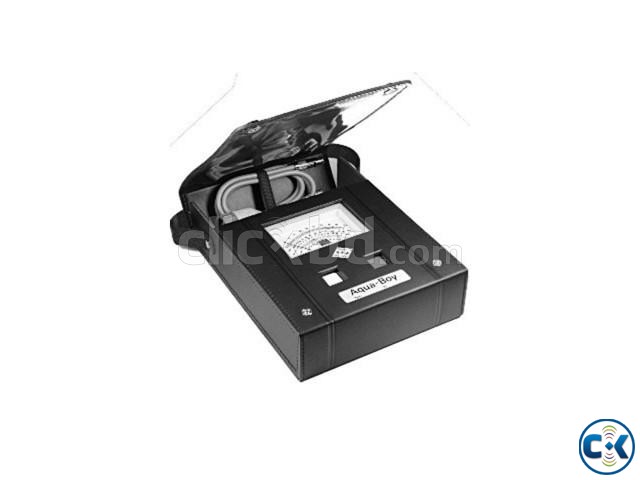

TEM1 Aqua Boy Textile Moisture Meter

Textile Moisture Meter

The TEM-1 Aqua-Boy textile moisture meter measures the moisture content in yarn, fabric rolls, filaments, fiber flocks and more. Easy to use and highly portable, these compact meters deliver instant results with an accuracy of 0.1%. Recommended by official test and research laboratories, Aqua-Boy moisture meters are the automatic choice of industrial specialists and scientists worldwide

Features;

• Easy to use for many applications
• Multiple scale for direct readings for wool, rayon and cotton
• Portable, battery-operated
• 0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
• High accuracy and repeatability
• Manufacturer’s Test Report optionally available (p/n TEM-1-MTR)
• Supplied as complete kit with MEM I Moisture Meter with leather carrying case, electrode holder 50204M, connecting cable 50200M, electrode 205 (50205M) and electrode 207 (50207M)

STANDARD ELECTRODES & ACCESSORIES;
	202For raw cotton, with a friction clutch permitting adjustment of a constant pressure. For measuring bulk goods such as cotton etc.The material is poured into the cup and compressed with the pad of the compression screw. As the material is compressed, it is crushed on the crusher cone to ensure accurate readings. The electrode connects to the moisture meter direct, without the use of the universal measuring cable. 50202M
	206For measuring yarns, cross-wound bobbins and hanks, needle length 45 mm, weight 45 g 50206M
	208For measuring harder materials e. g. felt, needle length 17 mm, weight 40 g 50208M
	209Stab electrode for textiles in sacks and rolls (needle length 325 mm) 50209M
	209 BSMCotton electrode, especially for measuring cotton and similar products in sacks or pressed bales piercing point 75 mm, insulated shank 175 mm (total length app. 250 mm) 50209BSM
	210Knife electrode for rolls or bales of textile fabric (knife length 110 mm) 50210M
	211Roller electrode for running webs of textiles (roller 27 mm Ø) 50211M
	212Continuous run electrode for yarn hanks and single filaments (roller 16 mm Ø) 50212M
	213Surface electrode for fabrics (surface 23 mm Ø) 50213M
	299Calibration electrode with a fixed calibration value 50299M
OPTIONAL ELECTRODES;
	205Needle electrode for yarns, cross-wound bobbins and hanks (needle length 25 mm) 50205M
	207Needle electrode for yarns, cross-wound bobbins and hanks (needle length 100 mm) 50207M
	200-TEM11 meter length cable to connect electrode to indicator
	204Electrode holder. Fixture to secure interchangeable electrodes with connection for 200-TEM1 cable. 50204M
