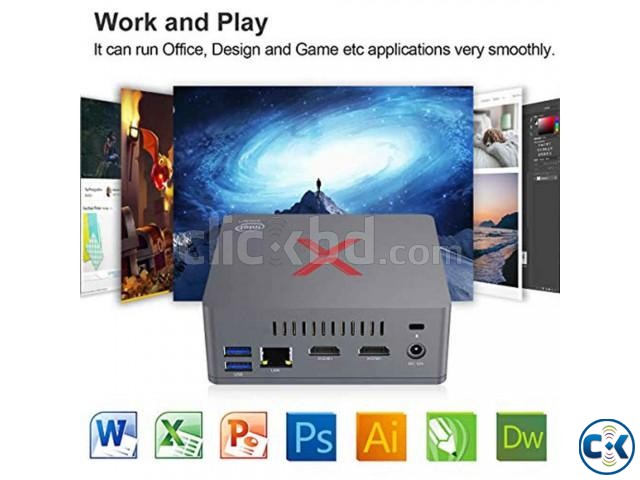

Beelink BT3-X Windows 10 Office Computer 4GB LPDDR4

Highlights

Intel Apollo Lake J3355 - BT3-X Mini PC DDR4 RAM 4GB ROM 64GB with dual wifi 1000 Lan Ultra 4K Portable PC. The processor is based on Gold Mont micro architecture and is manufactured on a 14 nm process. The chip operates at 2.0 GHz with burst frequency of 2.5 GHz & has a TDP of 10 W.

Pre-installed Windows 10 - Is pre-installed with Windows 10, so that our users are able to enjoy the advanced functions of Windows OS directly. Also support ubuntu.

Beelink BT3-X Mini PC is equipped with LPDDR4 4GB + eMMC 64GB, supporting stable operations and providing you with more space and caches to enjoy your entertainment.

Dual Band WiFi support for 2.4Ghz and 5.8Ghz band, it can transmit higher amounts of data.

Gigabit LAN can improve the net speed and the performance to a large extent.

Main Features

* Small size, Easy to carry and save desktop space.

* RAM LPDDR4 4GB, Storage 64GB eMMc.

* 2*HDMI port. Display is up to 4K*2K High Resolution stable and reliable performance.

* Intel HD Graphics 505 (4K 30Hz), stable video output and graphics signal transmission, smoother picture and clearer picture quality.

* Intel Apollo Lake J3355 is low-power mobile and desktop platform processor with high-end performance,

* No fan internal circulation Heat dissipation design efficiency greatly improved

* Rich interface: Multi-ports USB 3.0*4, MSATA, SATA 3.0, TF card reader, DC Power Port, LAN, RJ45.

Specification

General

Brand: Beelink

Model: BT3-X

Type: Mini PC

System: Windows 10 Also support ubuntu

CPU: Intel Apollo Lake J3355

GPU: Intel HD Graphics 505

RAM: 4GB DDR4

ROM: 64GB eMMC

Work Environment -10°C--45°C,30%--90% Humidity

Storage Environment-20°C--60°C,10%--90% Humidity

Product Details-

Communication

Wireless Lan : 802.11 b/g/n/ac  Bluetooth 4.0 ( Intel 3165 )

WiFi: 2.4G/5G

LAN:1000M

Bluetooth: Yes

Language: English, Germany, Italian, Spanish, Simplified Chinese,

Media Supported

Decoder Format: H.263,H.264,HD MPEG4

Video format: 4K,4K x 2K,AVI,DAT,ISO,MKV,MP4,MPEG,MPEG1,MPEG2,MPEG4,RM,WMV

Audio format: AAC,APE,FLAC,MP3,RM,WMA

Photo Format: GIF, JPEG, JPG, PNG

Support 5.1 Surround Sound Output: Yes

HDMI : Dual HDMI

Other Functions: 3D Games,3D Video, DLNA, ISO Files, Miracast, NTSC, PAL

External Subtitle Supported: Yes

Power Consumption.: 10W

RJ45 Port Speed: 1000M

Interface

Interface: DC Power Port *1, HDMI *2, RJ45 1000M*1, Audio Jack (HP&MIC)*1, TF card slot*1, USB3.0*4, Internal Connector MSATA SSD (50*30mm)*1, MINI PCIE (30*27mm) *1, SATA HDD (2.57-9.5mm)*1.

Power Requirement

Power Type: External Power Adapter Mode

Power Input Vol: 12V 2A

Power Adapter Input: 100-240V / 50-60Hz

Additional function

WOL

AUTO POWER ON

Dimensions and Weight

Product weight: 0.2230 kg

Package weight: 0.6400 kg

Package size (L x W x H): 19.45 x 12.25 x 5.50 cm / 7.66 x 4.82 x 2.17 inches

Package Contents

Package Contents: 1 x Mini PC, 1 x Power Adapter, 2 x HDMI Cable, 1 x Holder, 1 x Set of Screws, 1 x English Manual.
