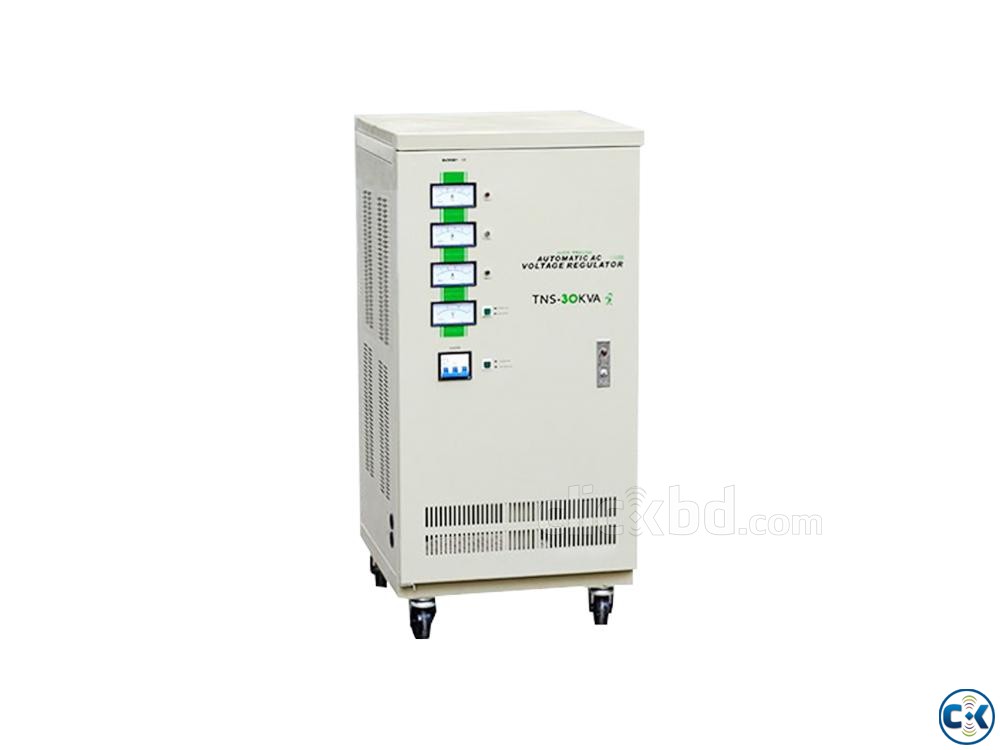

PGT 30KVA Automatic Voltage Regulator (AVR)

30 KVA Automatic Voltage Stabilizer /Regulator (Origin: China)
(1) The AC voltage regulator has a large capacity & high precision
(2) Adopted compensated voltage technology
(3) Wide input voltage range
(4) Over voltage protection
(5) Output voltage three phase auto-balance (individual control)
(6) The AC voltage regulator is equipped with bypass system
(7) Analog display are all available
(8) AVR/AVS is a necessary electronic device in electric power supply system.
Input Voltage
Phase: Three Phase
Voltage: 300-460 V
Frequency: 50 Hz
Output Voltage: 380V± (1-3%) OR 400V± (1-3%)
Phase: Three Phase
Frequency: 50 Hz
Protection: Low Voltage, Over Voltage, Phase Failure, Short Phase, Overload /Short Circuit
Cooling System: Natural cooling system (Optional)
Time Delay: 3-7sec/3-7min (Selectable)
Bypass: Auto/Manual (Optional)
Efficiency : > - 70% (AC-AC)
Acoustic (Noise level): ≤50dB
Environment (Temperature): -5℃ to 45℃
Environment (Humidity): 20% to 90%
