Harman kardon Avr-132 (cell-01713206040)

The AVR 132 is among the most versatile and multi-featured A/V receivers available, incorporating a wide range of listening options. In addition to Dolby Digital and DTS decoding for digital sources, a broad choice of analog surround modes are available for use with sources such as CD, VCR, TV broadcasts and the AVR's own FM/AM tuner. Along with the latest Dolby ProLogic II decoding technology, Dolby 3 Stereo, 5 Ch Stereo and custom Hall and Theater modes, only Harman Kardon receivers offer Logic 7 to create a wider, more enveloping field environment and more defined fly-overs and pans.In addition to providing a wide range of listening options, the AVR 132 is easy to configure so that it provides the best results with your speakers and specific listening-room environment. A Stereo-Direct mode bypasses the digital processor to preserve all of the subtleties of older analog, two-channel materials, while bass management, available in the surround and Stereo-Digital modes, improves your ability to tailor the sound to suit your room acoustics or taste.For the ultimate in flexibility, the AVR 132 features connections for four video devices, all with both composite and S-Video inputs, including the front-panel inputs. Two additional audio inputs are available, and a total of six digital inputs make the AVR 132 capable of handling all the latest digital audio sources. A video recording output and a six-channel input make the AVR 132 virtually future-proof, with everything needed to accommodate tomorrow's new formats right on board.

Product DescriptionHarman/kardon AVR 132 - AV receiver - 5.1 channelProduct TypeAV receiverDimensions (WxDxH)44 cm x 38.2 cm x 16.5 cmWeight9.6 kgSound Output ModeSurround SoundBuilt-in DecodersDolby Pro Logic, Dolby 3 Stereo, Dolby Pro Logic II, DTS Neo:6, DTS 96/24, Dolby Digital, DTS decoderSurround System Class5.1 channelResponse Bandwidth10 - 100000 HzOutput Power150 WattRadio SystemRadio tuner - AM/FMRemote ControlUniversal remote control - infraredPowerAC 230V ( 50 Hz )

GENERALProduct TypeAV receiverWidth44 cmDepth38.2 cmHeight16.5 cmWeight9.6 kgAUDIO SYSTEMSound Output ModeSurround SoundBuilt-in DecodersDolby Pro Logic, Dolby 3 Stereo, Dolby Pro Logic II, DTS Neo:6, DTS 96/24, Dolby Digital, DTS decoderDigital Sound Processor (DSP)Built-inDSP PresetsHall, Theatre, 5ch stereo, Logic 7Surround System Class5.1 channelResponse Bandwidth10 - 100000 HzSignal-To-Noise Ratio95 dBOutput Power / Total150 WattInput Impedance47 kOhmInput Sensitivity200 mVTotal Harmonic Distortion0.07%Amplifier Output details30 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.07% - 2 channel(s) ( front )
30 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.07% - 1 channel(s) ( centre )
30 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.07% - 2 channel(s) ( rear )Built-in clockYes, sleep timerTimerSleepBuilt-in DisplayFluorescentDisplay DimmerBuilt-inCONNECTORSHeadphone JackBuilt-inCoaxial Digital InputBuilt-inOptical Digital InputBuilt-inRADIO SYSTEMTypeRadio tuner - AM/FM - digital radio tunerTuner Frequency RangeFM: 87.5 - 108 MHz, AM: 522 - 1620 kHzTuning DisplayFluorescent displaySignal-To-Noise Ratio65 dBTotal Harmonic DistortionMono: 0.15%, stereo: 0.3%Supported RDS FunctionsCT, PTY, RTREMOTE CONTROLTypeUniversal remote control - infraredFeaturesMacro function, programmable, multi-brand compatibilityCONNECTIONSConnector Type1 x headphones ( phone stereo 6.25 mm ) - front

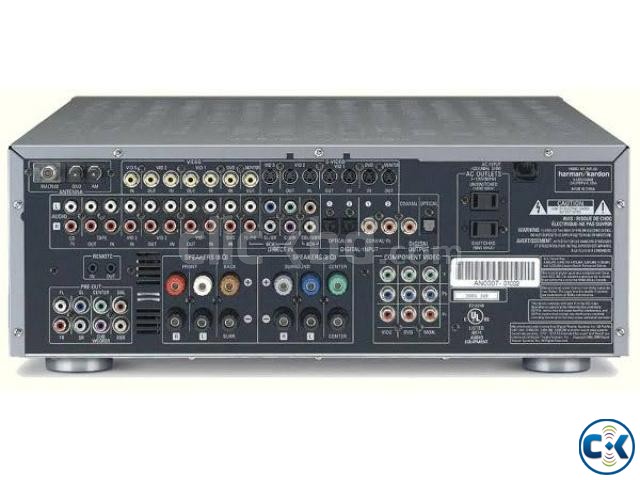

1 x digital audio input (optical) ( TOS Link ) - front
1 x digital audio input (coaxial) ( RCA phono ) - front
1 x S-Video input ( 4 PIN mini-DIN ) - front
1 x composite video/audio input ( RCA phono x 3 ) - front
1 x AM antenna - rear
1 x FM antenna - rear
2 x audio line-in ( RCA phono x 2 ) - rear
1 x audio line-out ( RCA phono x 2 ) - rear
3 x composite video/audio input ( RCA phono x 3 ) - rear
1 x composite video/audio output ( RCA phono x 3 ) - rear
3 x S-Video input ( 4 PIN mini-DIN ) - rear
1 x S-Video output ( 4 PIN mini-DIN ) - rear
1 x monitor output ( RCA phono ) - rear
1 x monitor output ( 4 PIN mini-DIN ) - rear
2 x component video input ( RCA phono x 3 ) - rear
1 x component video output ( RCA phono x 3 ) - rear
6 x digital 5.1 channel audio line-in ( RCA phono ) - rear
1 x subwoofer output ( RCA phono ) - rear
2 x digital audio input (optical) ( TOS Link ) - rear
2 x digital audio input (coaxial) ( RCA phono ) - rear
5 x surround speakers output ( banana x 2 ) - rearPOWERPower DevicePower supply - internalVoltage RequiredAC 230V ( 50 Hz )Power Consumption Operational580 WattPower Consumption Stand by / Sleep72 Watt
