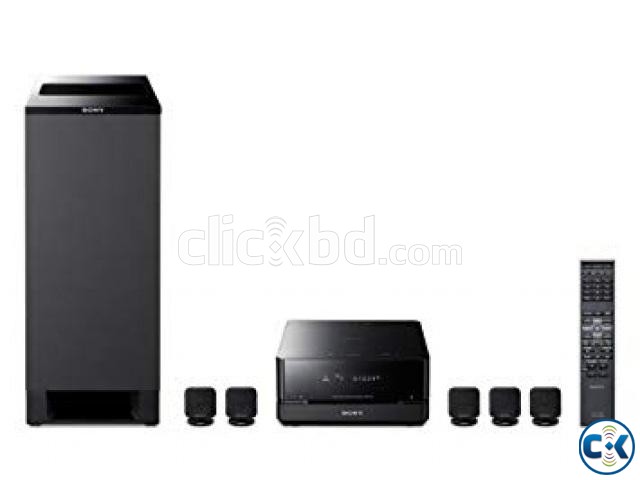

Sony HT-IS100 Home theater system

Amplifier

POWER OUTPUT (TOTAL)

50 W x5 + 100 W + 100 W= 450W

NUMBER OF AMP. CHANNELS

5.1ch

BI-AMP

NO

TYPE

Digital

4 OHM / 8 OHM SWITCHING

NO

CIRCUIT DEVICE

S-Master (32 bit)

DSP

Sharc

OP PROCESSING

NO

ANALOG DOWN MIX

NO

EQUALIZER (F / C / SUR / SUR B) BASS, MID, TREBLE

B,M,T / NO / NO / NO

SUBWOOFER X`OVER

Fix 800Hz

ANALOG DIRECT

NO

PURENESS CONTROL

NO

SOUND FIELD LINK (W LOCK)

YES (NO)

SOUND FIELD PROGRAM (HEADPHONE)

0

FRONT SURROUND MODE (S-FORCE)

NO

PORTABLE AUDIO ENHANCER

YES

CINEMA STUDIO EX. A/B/C MODE

NO

DIGITAL CONCERT HALL

NO

X-ROUND

NO

SPEAKER SELECTOR

NO

SPEAKER TERMINAL

A: Color Socket

HEADPHONE OUT

NO

I/Os

USB

NO

DIGITAL MEDIA PORT (LEVEL 1)

1

IX (WI-FI)

Optional

BLUETOOTH®

Optional

CONNECT

Optional

IPOD®

Optional

FRONT INPUT

NO

AUDIO IN / OUT (EXCL. TUNER)

1/0

A / V IN / OUT (S-VIDEO I / O): INCLUDING FRONT AV

1 / NO (NO / NO)

MONITOR OUT (S-VIDEO OUT)

NO (NO)

COMPONENT VIDEO IN / OUT (PASS THROUGH)

2/1

COMPONENT VIDEO D-TERMINAL I/O (GRADE)

NO

PHONO (MM)

NO

MULTI-CH IN

NO

Digital In/Out

HDMI™

3 / 1

I.LINK

NO

OPT. : INCLUDING FRONT A/V

3 / 0

COAX.

1 / 0

DIGITAL INPUT ASSIGN

YES (coax)

PRE OUT

NO

Decoding Format

DTS HD / DOLBYTRUHD / DOLBY DIGITAL+

NO / NO / NO

LPCM (2CH / 5.1CH / 7.1CH) THRU HDMI™

YES / YES / YES

DOLBY DIGITAL / DTS

YES / YES

DOLBY DIGITAL EX

NO

DTS-ES (MATRIX6.1 / DISCRETE6.1)

NO

DTS 96 / 24

NO

DTS NEO:6

NO

DOLBY PROLOGIC

YES

DOLBY PROLOGIC II

YES

DOLBY PROLOGIC IIX

NO

DOLBY DUAL MONO

YES

96K / 24BIT PCM

YES

Tuner

XM RADIO

NO

NEURAL AUDIO

NO

SIRIUS

NO

RDS

YES

PRESET CHANNEL (XM / FM / AM)

0 / 20 / 10

STATION NAME

YES

AUTO TUNING

YES (RM)

DIRECT TUNING

NO

Video Features

HDMI™ REPEATER

YES

HDMI™ QUALITY 1080P

YES

HDMI™ QUALITY 1080 / 24P

YES

HDMI™ QUALITY X.V.COLOR (XVYCC)

YES

UPSCALING (COMPONENT / HDMI™)

NO / NO

VIDEO UP CONVERTER (S / COMPONENT / HDMI™)

NO / NO / YES (1080i)

VIDEO DOWN CONVERTER (DIGITAL / ANALOG)

NO / NO

A / V SYNC (VARIABLE / FIXED)

DIR (LC890561W)

TIME (MSEC)

48kHz:0～200ms / 10ms

SAMPLING FREQUENCY (96KHZ / 48KHZ)

Depend on the signal

ASSIGNABLE HDMI™ VIDEO IN

NO

ASSIGNABLE COMPONENT VIDEO IN

NO

DCAC (Digital Cinema Auto Calibration)

DCAC (DSP / UCOM)

YES (Bronze)

BAND

7

MIC (STEREO / MONO)

MONO

General

PANEL

Mold

COLOR

Black (Spray)

REMOTE COMMANDER

RM-AAU035

DISPLAY

5x7 dot Seg. FL

MULTI CHANNEL DECODING BLUE LED

NO

SLEEP TIMER

YES

GUI / OSD

NO

PIN JACK

Nickel

DETOUCHABLE AC

NO

AC OUTLET (SWITCHED)

NO

POWER REQUIREMENTS

220 - 240V 50 / 60Hz

POWER CONSUMPTION

115 W

STAND BY

0.3 W

Speaker cone (Subwoofer)

FTC 28-200HZ THD 1%

NO

OUTPUT POWER (1% THD)

NO

OUTPUT POWER (10% THD)

NO

OUTPUT POWER (RMS)

NO

UNIT SIZE

120mm / 160mm

CENTER & SURROUND SPEAKER PACKAGE

NO

SPEAKER SYSTEM

Bass Reflex

MAGNETICALLY SHILELDED

NO

AUTO POWER ON / OFF

NO

NUMBER SUBWOOFER

1 Box (2 Way)

Speaker cone (front speaker)

UNIT SIZE FOR L,R

65 mm

SPEAKER SYSTEM

Bass Reflex

MAGNETICALLY SHILELDED

YES

Speaker cone (surround speaker)

UNIT SIZE FOR REAR

35 mm

MAGNETICALLY SHILELDED

YES

Speaker cone (center speaker)

UNIT SIZE FOR CENTER

35 mm

MAGNETICALLY SHILELDED

YES

Speaker Connection

SATELLITE SPKS

Wire

SUBWOOFER

Active

Additional supplied item

COAXIAL CABLE

NO

OPTICAL CABLE

YES (for TV)

MONAURAL CORD (FOR SW)

NO

SPEAKER CABLE

YES

HDMI™ Cable

SUPPLY SPEAKER SOCKET

NO

WIRELESS RADIATOR / RECEIVER (SUPPLIED)

NO

DVD PLAYER (SUPPLIED)

NO

EASY SET UP GUIDE (SUPPLIED)

NO

COLOR LABEL FOR CARTON BOX

NO

Speaker Unit Weight & Dimension

FRONT SURROUND SOUND SPEAKER LEFT

SS-IS15

FRONT SS L / SIZE (WXHXD) MM

45 x 55 x 40

FRONT SS L / WEIGHT (KG)

0.07

FRONT SURROUND SOUND SPEAKER RIGHT

SS-IS15

FRONT SS R / SIZE (WXHXD) MM

45 x 55 x 40

FRONT SS R / WEIGHT (KG)

0.07

CENTER SURROUND SOUND SPEAKER

SS-IS15

CENTER SPEAKER / SIZE (WXHXL) MM

45 x 55 x 40

CENTER SPEAKER / WEIGHT (KG)

0.07

REAR SURROUND SOUND SPEAKER LEFT

SS-IS15

REAR SS L / SIZE (WXHXD) MM

45 x 55 x 40

REAR SS L / WEIGHT (KG)

0.07

REAR SURROUND SOUND SPEAKER RIGHT

SS-IS15

REAR SS R / SIZE (WXHXD) MM

45 x 55 x 40

REAR SS R / WEIGHT (KG)

0.07

SUBWOOFER

SA-WIS100

SUBWOOFER SIZE (WXHXD) MM

238 x 441 x 434

SUBWOOFER WEIGHT (KG)

14.5

INFRARED RECEIVER

IR-R100

RECEIVER SIZE (WXHXD) MM

46 x 19 x 45

RECEIVER WEIGHT (KG)

0.15

UNIT TYPE (SURROUND SB)

NO

SIZE (WXHXD) MM

NO

WEIGHT (KG)

NO

Carton

INNER (LXWXH) MM

61.5 x 51.9 x 31.6H

OUTER (LXWXH) MM

63.1 x 53.5 x 34.8H

WEIGHT (KG)

18

Supplied Accessories

SUPPLIED ACCESSORIES

Sony Remote, Optical Cable x1 (TV)
