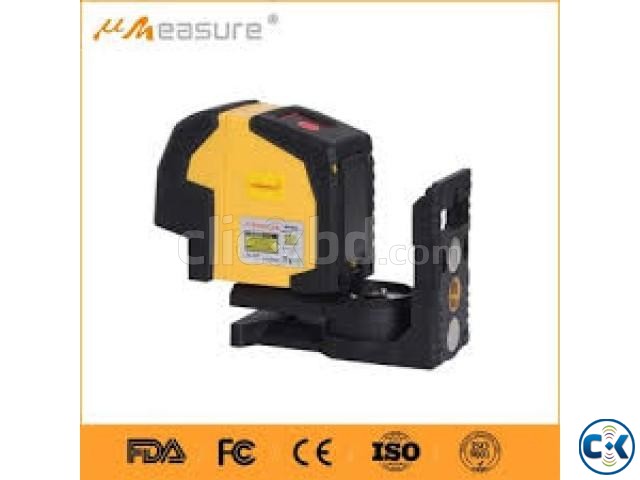

Laser Cross Line Level Meter

• Robust Over-molded Housing
• Adopting ARIMA Red Laser Unit
• Self Leveling Range of 4±1 Degree
• Fan angle 100 degree
• Ultra Bright Laser Beams allows all possible applications
• Simplify Layout Tasks and Increase Productivity
• IP54 – Water/Debris Resistant.
• One Year Warranty ,Guaranteed Reliable!
• Full-time pulse mode allows use with detector
• Central locking mechanism helps protect internals, also allows use of laser tool’s manual mode
• Comes Complete with Soft Pouch, Multi F.Clamp, and Operating Manual

Product details

Highlights:
Robust over-molded housing
Ultra bright laser beams
Allows all possible applications
IP54 – water/debris resistant; Guaranteed Reliable!
Full-time pulse mode allows use with detector
Central locking mechanism helps protect internals, also allow use of laser tool’s manual mode

Specifications:

Item Number	MSR20
Plant Code	8011R
Laser Class	Class 2
Laser Wavelength	635nm±5nm
Horizontal Accuracy	±3mm/15m
Vertical Accuracy	±3mm/15m
Self-leveling Range	4°±1°
Self-leveling Time	≤3s
Working distance (Dot)	30m ≥55m with detector
Working distance (Line)	30m ≥55m with detector
Operating Time	16h (all lasers on)
Power Source	4דAA”（LR6）
IP Rating	IP54
Light source & output power	H / V 20mW
	Red Light source
Line accuracy	H/V Line ±2mm/10m
Dot accuracy	NA
	NA
Operating Temperature Range	-10℃to 50℃
Storage Temperature Range	-20℃to 70℃
Mount Size	1/4”-20 & 5/8”-11
Kit Content	4*AA batteries
	Target Plate
	Mag.Pvt Base
	Soft Pouch
	English Manual
	White Box
