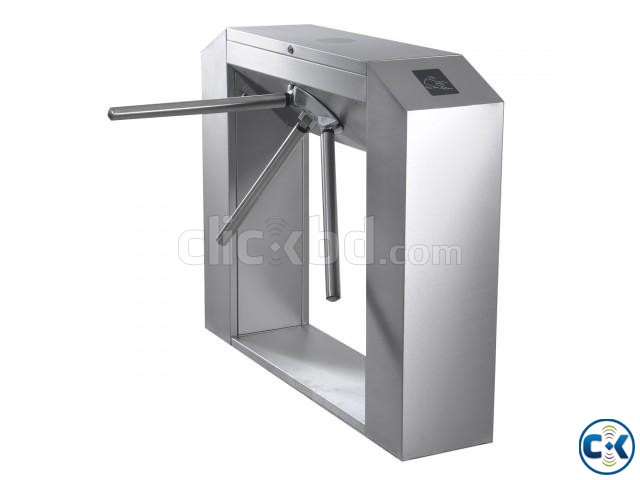

Three roller turnstile gate

Three roller turnstile gate Office Building Subway Station Retractable
Price: 95000
Model NO.: NS-TG1
Description:
• Application: Access Control System
• Type: Three Roller turnstile Gates
• Communication Interface: RS485, TCP/IP
• Certification: Ce/Rosh/FCC/SGS
• Material: SUS304
• Main Function: to Control The Traffic
• Voltage: 220V AC Operating Voltage: 24V5a Frequency: 50Hz
• Specification: 1200*420*980mm
• Sensing Method: Electric
• Movement: Single Movement
• Control Mode: Automatic
• The Pedestrian Width: 550mm
• Thickness: Cover 1.5 mm, Case 1.2mm
• The Environment Temperature: Minus 30 - Above 60 Degrees Celsius Zero
• Weight: 50kg

Product Description
Specifications:
thickness Cover 1.5 mm, case 1.2mm
The pedestrian width 550mm
Brake machine control domestic visual voice motherboard
weight 50kg
size 1200*420*980mm
The environment temperature Minus 30 - above 60 degrees Celsius zero

Input voltage 220VAC 220 ±10%
Brake machine control The whole domestic visual voice control panel
The pedestrian infrared 4pairs
Service life 5000000times
direction the arrow indicator
rotation model High-performance electromagnetic photoelectric sensor
Movement type Proximity switch location
Control signal relay signal input

Description:

1. With functions of breakdown self- checking and alarm prompt, it has easy maintenance and usage;

2. With telephone self-checking function, automatic recovery in locked state and Powering off , automatically open.

3. Can read the card and with no memory function, which users can set according to their own needs through motherboard keyboard.

4. When pedestrians read effectively cartoon lines, infrared detect pedestrians ,then switch off the machine. Moreover, switching off time can be delayed from 1 to 5 seconds can through the main menu set.

5. With automatic reset function. After reading card effectively, the passage won't go through within the prescribed period of time the system will automatically cancel the passage of the permission to pass, and restrict the passage of time can be set by the managers themselves.

6. If pedestrians forget to read CARDS or invalid CARDS into the channel, the system will ban pedestrians and will send out alarm, only after the pedestrian exit channel to remove alarm; To read the chi-square allows traffic effectively;

7. With 485 remote control on switch-off function, in order to satisfy the user's special requirements and fire safety requirements.

8. Impact resistant, without receiving the start signal, automatically telescopic arm will be locked.

9. A unified, standard external electrical interface, can be hooked up with all kinds of reading and writing equipment, facilitate system integration, and can be realized through the management of computer remote control and management.

10. Can automatically get traffic statistics, it presents an intuitive way (optional) for managers, to make managers know certain direction of passage well like the palm of his hand.
