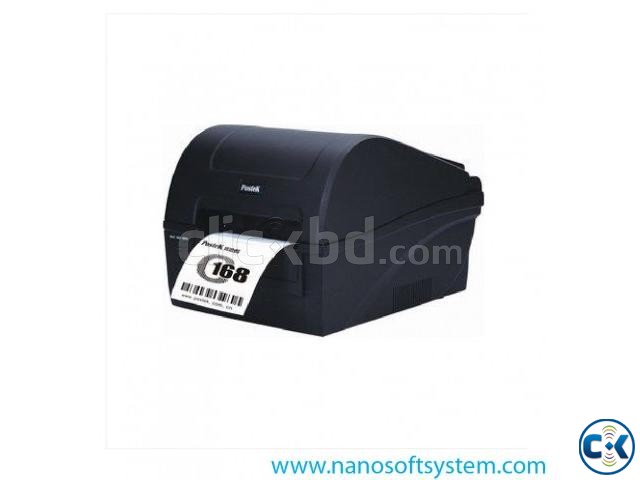

Postek C168 / 200 s General Purpose Barcode label printer

Postek C168 / 200 s General Purpose Barcode label printer paper matte silver jewelry tag Water Mark of the bar code label printers

Model: NS-P8
Price: 7500
Poduct Description
Postek C168 / 200 s General Purpose Barcode label printer paper matte silver jewelry tag Water Mark of the bar code label printers
C168 / 200 s Compact Printer
features
compact, affordable, endurance.
rigid structure, plus the high reliability of the engine and transmission system and result in minimal downtime and low maintenance costs.
360 tape capacity makes printing a large volume of labels easily without frequent congestion.
Reflective (Adjustable) and permeable media sensors.

Printing mode: thermal / thermal transfer;
Resolution: 300 dots / inch (12 mm);
The largest print speed: 3 IPS (76.2 mm / sec.), 2 (50.8 mm / sec.);
Maximum print width: 4.17 "(106 mm);
The largest printing length: 79 "(2000 mm);
Memory: 2 mbflashrom, 2 64MBSDRAM;
Label size:
Width: 110 mm, maximum 27 mm minimum;
Outer Diameter: maximum 4 "(102 mm);
Inner Diameter: minimum 1 "(25.4 mm);
Label thickness 0.06 0.15 mm (0.003 "to 0.003"), including the thickness of the lower paper;
Carbon Size:
Maximum diameter: 2.75 "(70 mm)
The inner diameter of 1 "(25.4 mm);
Maximum width: 110 mm;
Maximum length: 360 m;
Detection Paper path: Reflection type;
Can Print Fonts: Windowstruetypefonts (With Windows driver software), the machine built-ES 24 Bitmap font and font Chinese songs;
Can print bar code:
CODE39 Code93, CODE128 / subseta, B, C, Codabar ?, Interleave2of5 upca / E2and5add? EAN-13/8, UCC-128? POSTNET, Plessey, Telepen hbic, Fim-dimensional bar codes such as PDF417 two-dimensional bar code;
Communication interface USB interface;
Power Adapter: Input AC 100-240 V, 47-63 Hz, Output, DC 24 V, 2.0;
Weight: 2.8 kg;
Fuselage size: 236 * 236 * 291 (* width * depth) mm;
Working environment:
Temperature: 0 to 40C;
Relative humidity: 5% to 85%, without condensation;
Storage conditions:
Temperature: -40-60C;
Relative humidity: 5% to 85% non-condensing.



Specifications

Printing Method Thermal Transfer
Printing Resolution 300 dpi
Max Printing Speed 3 ips (76.2 mm/s)
Max Printing Width 4.17″ (106 mm)
Max Printing Length 79″ (2000 mm)
Memory 8 MB FLASH ROM, 16 MB SDRAM

Media Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper.
Width: 4.33″ (110 mm) max., 0.98″ (25 mm) min.
Supply roll: OD 5″ (127 mm) max.,Or OD 9″ (228.6 mm) max. (using External Media Stand) ;
ID 1″ (25.4 mm) min.
Thickness: 0.003″ - 0.006″(0.08 - 0.15 mm), including liner.
Ribbon Wax, Wax/Resin, Resin
Ribbon roll: OD 3″ (76.2 mm) max., ID 1″ (25.4 mm) core
Max width: 110 mm; Max length: 300 M. Ink side: Out
Media Sensor Reflective (Adjustable)/ Transmissive
Fonts Five built-in ASCII fonts, Downloadable TrueType fonts
Barcode Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2
and 5 add-on, EAN-13/8/128, UCC-128;
2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code.
Interfaces RS-232 Serial, USB DEVICE 2.0
Power Rating 24 VDC Power adapter
Weight 2.8 kgs
Dimensions W 236 mm x D 291 mm x H 199 mm
Operating Environment Temperature: 0℃ – 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing
Storage Environment Temperature: -40℃ – 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing
Optional Items Standard Item: External Media Stand;
Optional Items: Rotary Cutter, 10/100M-bit Ethernet, Centronics Parallel, Media Guide Adaptor and External Label Rewinder

WHY “Nanosoft System"
---------------------------------
More than 1000+ Existing Clients...
24x7 Support Team...
Granted After Sales Service...
100% Qualified Product Guarantee….
We Offer Product & Service Any Where in Bangladesh…
ANY PRODUCT & SERVICE HOME DELIVERY FACILITY
All Kinds of IT Products are Available Here

WARRANTY: ONE YEAR
--------------------------------------------------
Free Service: One Year
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
