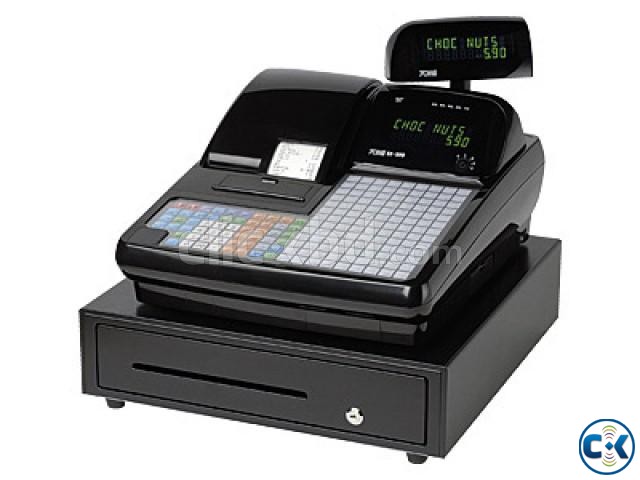

TOWA ELECTRONIC CASH REGISTER MACHINE

SPECIFICATIONS OF TOWA ELECTRONIC CASH REGISTER MACHINE

Display
Operator : 2 line fluorescent display
Upper : 1 line Alpha numeric 10 digits
Lower : 1 line 7 segments 10 digits
Customer : 2 line fluorescent display
Upper : 1 line Alpha numeric 10 digits
Lower : 1 line 7 segments 10 digits
Printer ('Drop-in' paper loading mechanism)
2 station 58mm line thermal printer
Printing speed: Approx. 14 lines per sec.
Keyboard
173 Key position Flat button 'soft' keyboards
Power
230 voltages AC +/- 10%
Operating temperature
0 to 40°C
Dimensions
Body : 350 (W) x 429 (D) x 188 (H) mm
Drawer(N26) : 410 (W) x 415 (D) x 114 (H) mm
Weight
Body : 6.6 Kgs
Drawer(N26) : 6.4Kgs
Total weights : 13.0 kgs
Cash Drawer : Separable type
Heavy-duty N26 Drawer with media slot
Memory backup
Approx. 700 hours by rechargeable (Ni-MH battery)
Interface (for PC Communication and Bar-code Scanner)
RS232 Port x 3 (RJ45 style modular jack interface)
RS485 Port x 2 (RJ11 style modular jack interface)
SD card slot x 1


FEATURES
• Price Look Up (PLU) : 5000 (Up to 25000)
• Department : 299
• Clerk : 50
• Cashier : 30
• Group : 99
• Guest : 50 (Up to 3000)
• E-Journal : 10000 lines
