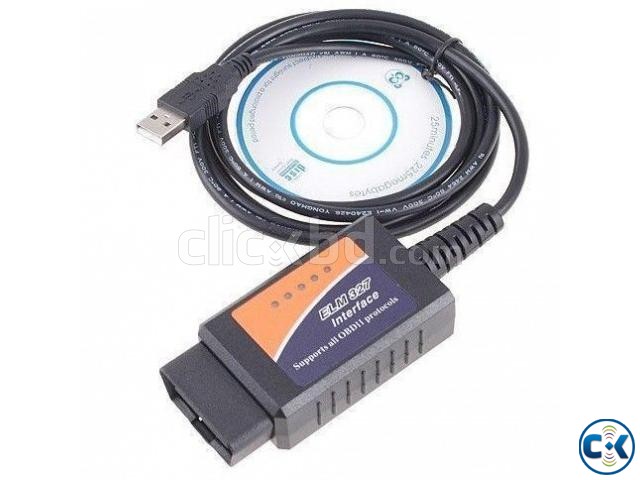

ELM327 OBD2 Scanner

Support 64 bit system
Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light
Compatible with Systems: DOS, Windows
View real-time vehicle data, graphs and performance parameters while you're driving
Find and fix problems before they happen
Compatible with all OBDII compliant vehicles
Clear diagnostic trouble codes and turn off check engine lights
Display and record real-time sensor data, including:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
Fuel Trim
+ More
Note : Your vehicle may not support all engine metrics. The availability of engine metrics varies depending on the vehicle make and model

Compatible Protocols:
ISO15765-4 (CAN)
ISO14230-4 (KWP2000)
ISO9141-2
J1850VPW
J1850PWM

Specifications:
Model: B09
Chip: T340
Output protocol: RS232
Baud rate: 9600 or 38400
LED indicator: OBDTx/Rx, RS232Tx, power supply
Working voltage: 12V
Working current: 45mA
Material: Plastic
Color: Black
Net Weight: 100g

Package included:
1 X ELM327 OBD2 Scanner
