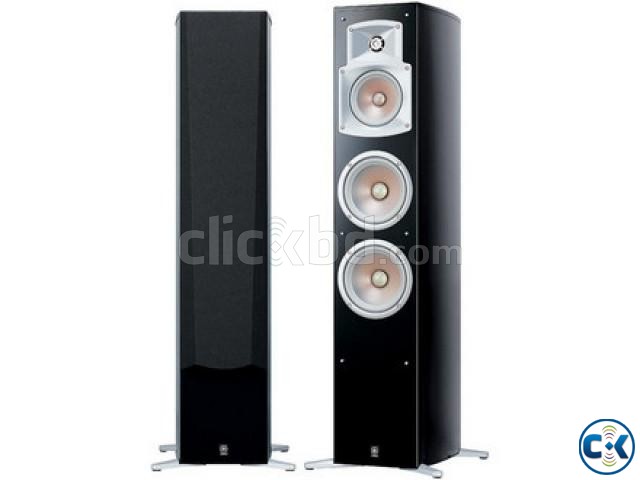

YAMAHA NS 555

3-way/4-driver Bass Reflex Speaker System

Yamaha's NS-555 speaker system has been designed specifically for home theater applications. The floor standing speaker is a bass-reflex design that can be used for main channels and incorporates a pair of 6 1/4" polymer-injected mica diaphragm (PMD) cone woofers, a 5" midrange cone driver and a 1” aluminum dome tweeter. For improved imaging, the midrange and tweeter utilize Yamaha's exclusive waveguide horns.

Internally Wired with Monster Cable™

Yamaha has chosen to ensure optimum sound quality by internally wiring some of the components with Monster Cable™. This ensures a clean, clear signal from the crossover network to the speaker driver.

Speaker Stands Included

Yamaha's matching speaker stands provides the solid footing necessary for full floor contact, enhanced stability and minimal vibration resonance. The stands also provide an attractive counterpoint to the cabinet.

Magnetic Shielding

The speaker is magnetically shielded, so it can be placed on a TV or video monitor without degrading the picture via stray magnetic fields.

Bi-wiring Capability

To further maintain signal purity, Yamaha provides bi-wiring capability for the NS-555 speakers. There are separate +/- terminals for the woofer(s) and other driver(s). The separation reduces modulation distortion and better sound quality.

OTHER FEATURES

• TYPE: 3-way, 4-speaker, bass reflex, magnetically shielded floorstanding tower

• DRIVER COMPLEMENT:

• Dual 6 1/4” polymer-injected mica diaphragm (PMD) woofers

• 5” cone midrange with waveguide horn

• 1” aluminum dome tweeter with waveguide horn

• INPUT POWER: 100 watts nominal, 250 watts music power

• FREQUENCY RESPONSE: 35 Hz-35 kHz

• SENSITIVITY: 88 dB / 2.83 V / 1 m

• IMPEDANCE: 6 ohms

• DIMENSIONS: (W x H x D) 8-3/4” x 39-7/16” x 12-1/4”

• WEIGHT: 44.1 lbs.
