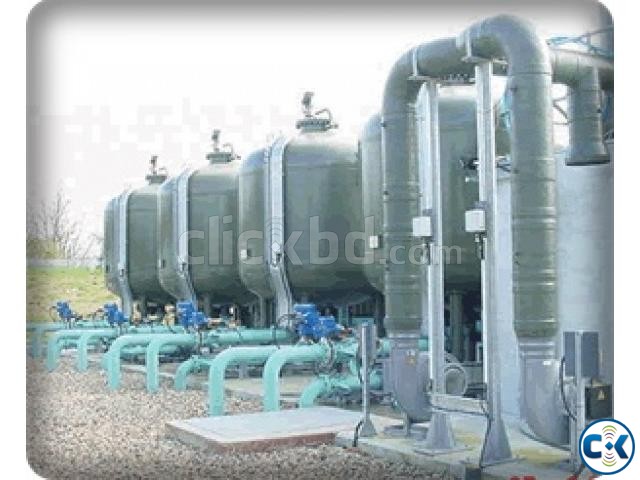

Industrial Water Treatment Plant

Tk 10,00,000
Seller info
Sold by:
Innovation Technology
Member since:
13 Mar 2015
Location:
Sylhet
Safety tips:
Don’t pay in advance
Meet in a safe & public place
Description

DESCRIPTION for Industrial Water Treatment Plant price in Bangladesh

TECHNICAL SPECIFICATION

Sub: Design, fabrication and supply of one unit water softener Plant, Iron Removing Plant & Multi Grade Pressure Sand Filter. MODEL NO. KRZ-7500-20
Capacity: 200m³/ hr.

01. Technical flowchart

RAW WATER AEARATION FEED PUMP IRON REMOVING PLANT MULTI GRADE PRESSURE SAND FILTER BASE EXCHANGE WATER SOFTENER Softened water

SCOPE OF OUR SUPPLY

A. ONE UNIT OF BASE EXCHANGE WATER SOFTENER.
Model : IT-7500-20
Capacity : 200 m³ / hr
Size : 2800mm dia x 3000 mm high approx

The softener body will be fabrication out of 10 mm thick M S sheet (Made by Korea) top and bottom. The softener will be completely assembled and pipe including PVC/ SS filter’s ball valves. Pressure gauge, Backwashing arrangement & regeneration system one Brine solution tank, and initial change of resin and tested in our factory having the following Technical data.

Max. Temp. Flow : 200 m³/ hr based on row hardness and iron
Pressure Gauge : Analog
Max. Pressure : 3.5 bar
Min. Pressure : 2.0 bar
Operation Cycle : 22.5hr + 1.5 hr for regeneration
Operation : Manually, Continuous Operation.
Resin Column : 2800mm dia x 3000 mm high approx
M O. C : 10 mm thick M.S sheet with Coaltar Epoxy Coated Paint of in the
Inside
Valves : 200 mm dia Batter fly valves.
Piping : 200 mm dia M S piping & fittings.
Resin : Cation Resin, Amberlite of Rohm & Hass
Quantity: 2500 Litter
Slot required : 240 KG per regeneration
Make : Innovation Technology

B. ONE UNIT OF MULTI GRADE PRESSURE SAND FILTER

Model : IT-7500-20
Capacity : 200 m³ / hr
Size : 2800mm dia x 3000 mm high approx

The Pressure Sand Filter body will be fabricated out of 10 mm thick M.S sheet (Made by Korea). The Pressure Sand Filter will be completely assembled and pipe including PVC/SS filters Batter fly Valves, Pressure gauge, Backwashing arrangement, and initial change of media and tested in our factory having the following Technical data.

Max. Flow : 200 m³/ hr
Max. Working Pressure : 3.5 bar
Min. working Pressure : 2.0 bar
Operation : Manually
Media Column : 2800mm dia x 3000 mm high approx
M O. C : M.S sheet (10 mm thick).
Painting : Inside of the softener body will be coated with Coaltar Epoxy Paint and outside with red oxide and enamel paint of desired colour.
Valves : 200 mm dia Batter fly valves.
Piping : 200 mm dia M.S piping & fittings
Make : Innovation Technology

C. ONE UNIT OF IRON REMOVING PLANT

Model : IT-7500-20
Capacity : 200 m³/ hr
Size : 2800mm dia x 3000 mm high approx

The Pressure Sand Filter body will be fabricated out of 10 mm thick M.S sheet (Made by Korea). The Pressure Sand Filter will be completely assembled and pipe including PVC/SS filters Batter fly Valves, Pressure gauge, Backwashing arrangement, and initial change of media and tested in our factory having the following Technical data.

Max. Flow : 200 m³/ hr
Max. Working Pressure : 3.5 bar
Min. working Pressure : 2.0 bar
Operation : Manually
Media Column : 2800mm dia x 3000 mm high approx
M O. C : M.S sheet (10 mm thick).
Painting : Inside of the softener body will be coated with Coaltar Epoxy Paint and outside with red oxide and enamel paint of desired colour
Iron Removing Media : Green send /Quantize Send
Quantity: 3000 Litter
Valves : 200 mm dia Batter fly valves.
Piping : 200 mm dia M.S piping & fittings
Make : Innovation Technology
INNOVATION TECHNOLOGY
EASTERN PLAZA, AMBERKHANA
SYLHET
www.innotech-bd.com
