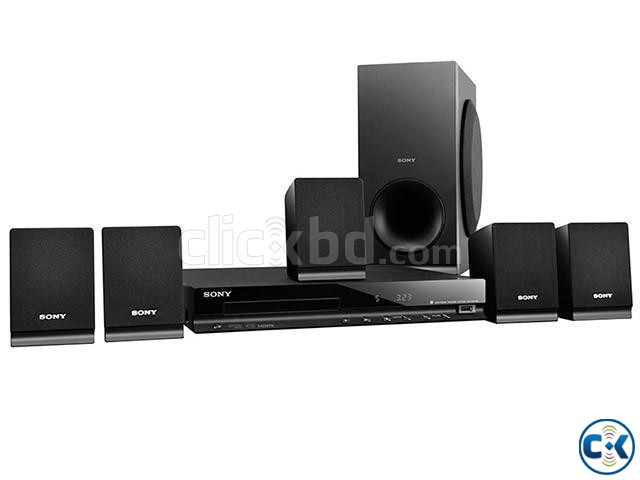

SONY HOME THEATER DAV-TZ140

Amplifier Audio
o Audio Power Output : Amplifier: 300W (50WX5 +50W Sub, 8Ohms, 1kHz, 10%THD)
• Amplifier Audio Features
o Dolby® Pro Logic® Decoding : Yes
o Dolby® Digital : Yes
o dts® Decoding : Yes
• Amplifier Audio Formats
o 2ch STEREO : Yes
o A.F.D. Standard : Yes
o A.F.D. Multi : Yes
o LPCM : Yes (2ch.) - Supports out via HDMI
o MPEG2 AAC : Yes (AAC Only via: DVD, CD & USB), WMA 9 Standard audio support as well
• Amplifier Equalizer
o Preset EQ : Yes (Auto/ Movie/ Music/ TV/ Game)
• Amplifier Inputs and Outputs
o Analog Audio Input(s) : 1 (Rear)
o Composite Video Output(s) : 1 (Rear)
o USB Port(s) : 1 (Front)-See Owners Manual for devices supported
o HDMI™ Connection Output(s) : 1 (rear)- Up to 1080P
• Amplifier Power
o Power Consumption (in Standby) : 0.4W
o Power Consumption (in Operation) : 29W
• Center Speaker
• Center Speaker Audio
o Speaker Type : Full Range Bass Reflex
o Impedance : 8 ohms
• Center Speaker General
o Magnetically Shielded : Yes
o Model Name : SS-CT121
o Speaker Unit : 1 Way (Full Range)
o Input Terminal : Push Type
o Supplied Cable : 2 Meters
o Front Grille/Material : Fixed - Cloth
o Woofer Unit : 55mm
o Enclosure Type : Bass Reflex
• •
DVD, VCD, CD Player Convenience Features
o Multiple Disc Resume : 10 Discs (CD/VCD) 5 Discs DVD
• DVD, VCD, CD Player General
o Disc Capacity : Single disc tray
• DVD, VCD, CD Player Video Features
o VCD Playback : Yes (VCD/SVCD)
o DVD Playback : Yes
o DVD+R Read Compatibility : Yes (DL as well)
o DVD+RW Read Compatibility : Yes
o DVD-R Read Compatibility : Yes (DL as well)
o DVD-RW Read Compatibility : Yes
• •
DVD/SA-CD/VCDCD Player Playback Features
o Play Mode(s) : Repeat All (CD/DVD/VCD); Repeat Title/Chapter/Track; Program (CD Only); Shuffle; Resume from Power Off (CD/DVD/VCD); Resume from Stop (CD/DVD/VCD/Xvid/JPeg)
• •
Disc Based Player Format
o JPEG : Yes (via: DVD, CD & USB)
o CD (CD-DA) : Yes
o MP3 : Yes (MP3/ID3Tag Ver.1.1/ID3Tag Ver.2.0 via: DVD, CD & USB)
o WMA : Yes (via: DVD, CD & USB)
o CD-R/RW Multi Session : Yes
o CD-R/RW : Yes
• Front Speaker
• Front Speaker Dimensions
o Cable Length : 2.5 meters
• Front Speaker General
o Enclosure Type : Bass Reflex (Ported)
o Rated Impedance : 8 ohm
o Model Name : SS-TS121
o Type : Micro Sat.
o Speaker System : 1 Way (Full Range)
o Woofer Unit : 55mm
o Front Grille/Material : Fixed - Punched Cloth
• General
•
o BRAVIA® Theatre Sync : Yes
o Control for HDMI - Easy Setting : Yes
• General Function
o Parental Control : Yes
• General On-Screen Display
o Language : English/Spanish/French/Italian/Dutch/Portuguese/Swedish/Greek/Russian/Chinese/Thai + 5 others
• General Video Features
o HDMI™ Upscaling : Yes
(up to 1080p)
• Subwoofer Speaker
• Subwoofer Speaker Speaker
o Speaker Unit : 130mm
o Speaker System : Bass Reflex
o Speaker Terminal Type : Push Pin
• Subwoofer
• Subwoofer General
o Supplied Cable : 3 Meters
• Subwoofer Speaker
o Speaker Unit : 130mm
o Speaker System : Bass Reflex
o Speaker Terminal Type : Push Pin
• •
Surround Speaker General
o Front Grille/Material : Fixed - Cloth
o Enclosure Type : Bass Reflex
o Input Terminal : Push Type
o Rated Impedance : 8 ohm
o Model Name : SS-TS121
o Speaker Unit : 1
o Speaker System : 1 Way (Full Range)
o Woofer Unit : 55mm
o Supplied Cable : 7 Meters
o Type : Micro Sat.
• Tuner
• Tuner Audio
o Tuner Type : FM
o Tuning : FM: 87.5 MHz-108.0 MHz (100 kHzstep)
• Tuner Inputs and Outputs
o Antenna Terminal (FM 75 Ohm) : Yes
• Weights and Measurements
• Dimensions (Approx.) : Main Unit: 13 1/2×2 1/4×12 7/8 in (340×56×325 mm)incl. projecting parts; Front & Speakers: 3 3/8×4 3/4×4 in (83×119×100 mm) incl. projecting parts; Surround Speakers 3 3/8×4 3/4×4 in (83×119×100 mm) incl. projecting parts; Subwoofer: 6 3/8×12 1/2×11 5/8 in (160×315×295 mm) incl. projecting parts
• Weight (Approx.) : Main Unit: 4 lb 11 oz (2.1 kg), Front Speakers: 13 oz (0.35 kg), Center Speaker: 16 oz (0.43 kg), Surround Speakers: 14 oz (0.39 kg), Subwoofer: 6 lb 10 oz (3.0 kg)
