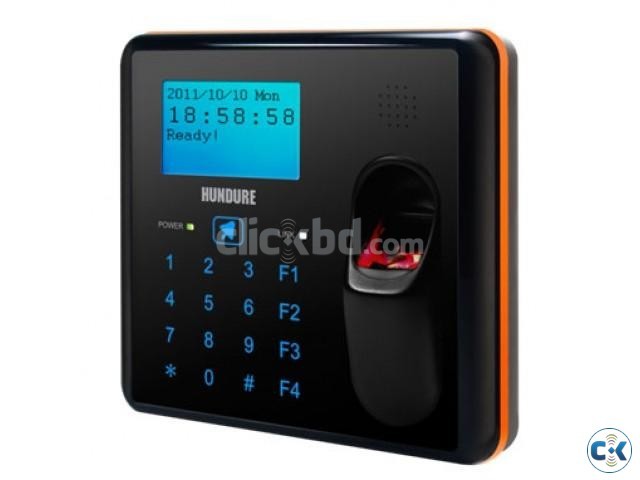

Hundure RAC-960PEF TCP/IP Standalone Access Controller

Product Description

Processor 32 Bit
Memory 1M
Input Ports 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1)
Output Ports Relay x 1 (Door Lock or Bell ) ,O.C. Output x 2 ( Door Lock / Alarm or Siren , external ACU-30 )
Cardholders / Events 18,000 / 18,000
LED Indicator Power / Comm.
LCD Display 128 x 64 Dot. Graphic Display with backlight
Keypad 17 Key (F1-F4, 0-9, ＊, ＃, Bell) (Sensitive Touch Keypad)
Real Time Clock Yes
Beep Tone Buzzer
ID or IP Setting Command setting by keypad
Read Format & Range Built-in EM / MIFARE® / MIFARE® DESFire module in the controller, able to connect with T1 / T2 / W26 type slave reader EM(125KHz) : 8~10cm(RAC-960PE)(max.)、MIFARE® / MIFARE® DESFire(13.56MHz) : 3~5cm(RAC-960PM)(max.)
Power Input DC 12V / 1A
Current Consumption 500mA. (max. excluding slave reader)
Comm. Interface RS-485 / TCP/IP
Comm. Baudrate RS-485：9,600/19,200 bps-N-8-1, TCP/IP：10/100 Mbps
Operating Temp. 0° C ~ 55° C / 32° F ~ 131° F
Relative Humidity 20% ~ 80%(Non-condensing)
Dimension 130mm(L) x 100mm(W) x 27mm(H)
Weight (Device) 340g
Made in Taiwan
