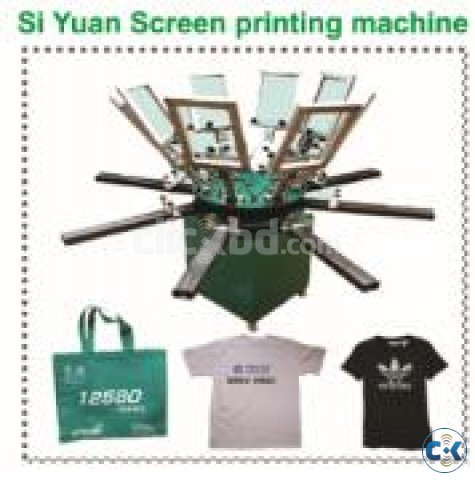

Si Yuan Screen Printing Mashine -8080

Si Yuan Screen Printing Mashine -8080


Specifications
Fit printing Clothes products such as 450*450mm;
All screen plate move round center axis and keep overprint precision.


This is a rotary clothes 10-color manual screen printing machine, suitable for printing 500 * 500mm about the format of the fabric,
paper, clothes, T-shirts and other products. Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors.
Printing is recommended workbench coating solvent Taiwan version of the plastic would be more accurate print positioning;
Have take place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm;
Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator;
More suitable for heat set printing ink, printing ink thickness, ink, bright;
Configuration of infrared drying device, which will help the plastisol ink is fast drying;
Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.

Technical Peramiter
SY-GT09-8080

1.Max printing thickness:0-20 MM;
2.Net weight: 560KG;
3.Max printing area:450X450mm
4.Size of working table: 500×500mm;
5.Max printing speed:1000Pcs/H.
6.Printing number: 10;
7.Drying mode: IR;
8.Max height of screen frame: 40mm;
9. Max size of screen frame: 550*680mm;
10. Wattage of heater: 3.6KW.

Performance::
1. Operated by hand, controllable is well;
2. Total-steel rotating-axis system ensure whirling free and Adaptability.
3. High-strength support pole make the machine structure rigidity.
4. 10-colour screen printing one time, overprint is precision .
5. Screen frame can be adjustable according to different objects to be printed.
6. Screen frame can be rise up after printing so that printing quality.
7. High-stabilization working table ensure non-shaking when printing .
8. IR Dryer with machine make the clothes drying fast.
