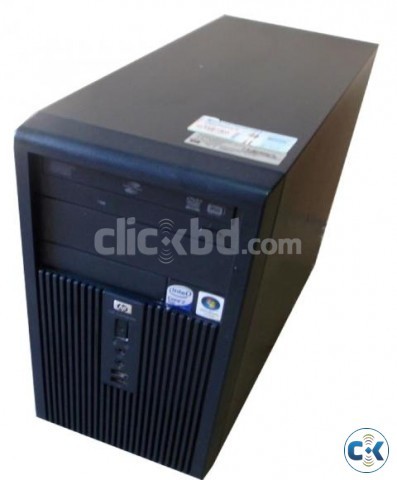

Hp Compaq dx 7400 Core2duo iq33chip Gm3100

HP Compaq dx 7400 business desktop plus gaming platform mother board///

multitype processor upgradable

Performance Best
Expandability Better

Operating system

Windows 7 running

Processor
Intel® Celeron® D Processor 420 / 430 / 440 (1.60 to 2.00 GHz, 512 KB L2 cache, 800 MHz FSB) or Intel® Pentium® Dual Core Processor E2140 / E2160 / E2200 (1.60 to 2.20 GHz, 1 MB L2 cache, 800 MHz FSB) or Intel® Core™2 Duo Processor E4400 / E4500 / E4600 / E6320 / E6420 / E6550 / E6750 / E6850 / E7200 / E8200 / E8400 (1.86 to 3.00 GHz, 2 to 6 MB L2 cache, 800 to 1333 MHz FSB) or Intel® Core™2 Quad Processor Q6600 (2.40 GHz, 8 MB L2 cache, 1066 MHz FSB)
Chipset
Intel® Q33 Express
Form factor
Microtower
Memory
Memory, maximum
4 GB DDR2-Synch DRAM
Memory slots
4 DIMM
Storage
Internal drive bays
2 internal 3.5 inch
External drive bays
2 external 5.25 inch, 1 external 3.5 inch
Optical drive
SATA CD-ROM Drive (available in APJ only
not supported by Windows Vista®), SATA DVD-ROM Drive, SATA CD-RW/DVD-ROM Combo Drive (not supported by Windows Vista®), SATA DVD+/-RW (DL/DF) Drive
Graphics
Graphics
Integrated Intel® Graphics Media Accelerator 3100 Graphics memory is shared with system memory. Graphics memory usage can vary from 8 to 256 MB depending on the amount of system memory installed and system load
Expansion features
Ports
Rear: 6 USB 2.0, 1 serial port, 1 optional second serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Mic In, Front: 2 USB 2.0, audio ports
Slots
1 full-height PCI 2.3, 2 full-height PCI Express x1, 1 full-height PCI Express x16
Media devices
Audio
Integrated High Definition audio with Realtek ALC888 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker
Communication features
Network interface
Integrated Broadcom NetXtreme Gigabit Ethernet for HP
Network cards
Optional Intel® Pro 1000 PT PCIe Gigabit NIC
Power and operating requirements
Power
Input voltage 90 – 140 / 100 – 127 VAC, 50/60 Hz, 47 – 63 Hz, passive PFC
Operating temperature range
10 to 35° C
Operating humidity range
10 to 90% RH
Dimensions and weight
Weight
9.6 kg
Minimum dimensions (W x D x H)
17.5 x 41.6 x 35.3 cm
Security management
Security management
Padlock loop, Kensington Lock Support
Physical security
HP Business security lock
