Ashok Leyland Super Bus Chassis

Tk 32,00,000
Whatsapp

01787xxxxxx
Click to show phone number
Seller info
Sold by:
MAFUJA TRADING
Member since:
07 Jan 2020
Location:
Dhaka Tejgaon
Safety tips:
Don’t pay in advance
Meet in a safe & public place
Description

DESCRIPTION for Ashok Leyland Super Bus Chassis price in Bangladesh

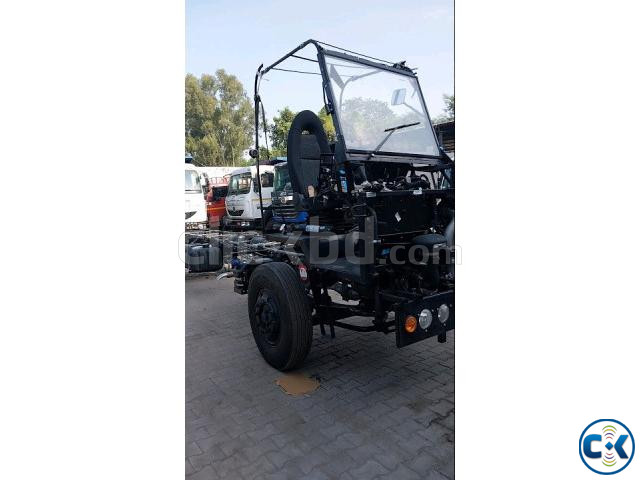

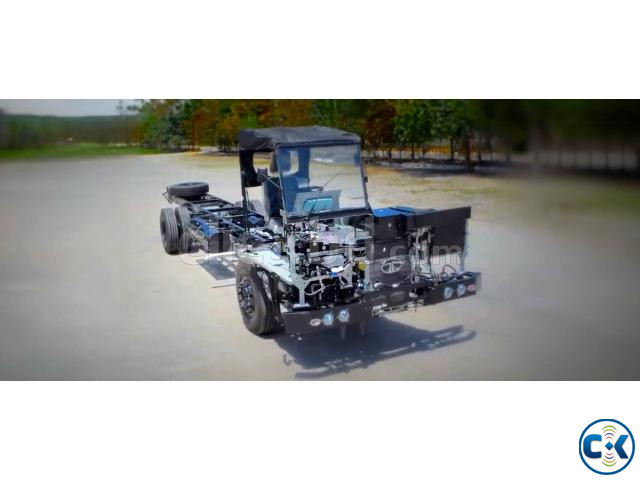

Ashok Leyland B-1616 Super Bus Chassis
যোগাযোগ(০১৭১৫-১৭৪৭৯৮/ 01796-940928) করুন, চেসিস সম্পর্কে আরো বেশি জানতে চাইলে, ধন্যবাদ।
Ashok Leyland Super Bus Chassis
Ashok Leyland Bus Chassis
Tusker Super 1616il-এরঅধিকধারণক্ষমতায়মুনাফাওহয়অধিক।ফলে
- ৬সিলিন্ডারবিশিষ্টশক্তিশালী H সিরিজইঞ্জিন
- ১৬০হর্সপাওয়ার @ ২৪০০RPM
- বিএস৩ইন-লাইনফুয়েলপাম্প, সেন্সরবিহীন
- ১৬টন GVW
- সর্বোচ্চ২৪ফিটপর্যন্তদীর্ঘলোডবডি
- শক্তিশালীচেসিসফ্রেম
- টিল্টেবলস্লিপারকেবিন
- রেডিয়ালটায়ার
১৬০হর্সপাওয়ারবিশিষ্টশক্তিশালী H সিরিজইঞ্জিন
- সর্বোচ্চপিকআপবেশিমাইলেজ
- বিএস-৩ইন-লাইনফুয়েলপাম্প(সেন্সরবিহীন)
- ZF সিনক্রোমেশওভার-ড্রাইভগিয়ারবক্স
- শক্তিশালীচেসিসফ্রেমসাথেঅতিরিক্তফ্লিচ
- সর্বোচ্চ২৪ফিটপর্যন্তদীর্ঘলোডবডি
- টিল্টেবলস্লিপারকেবিন
CHASSIS SPECIFICATION
4700 mm WB (20 Feet LB) / 5334 mm WB (24` Feet LB)
1616 IL 24 FEET COVERED VAN
1616 IL 20 FEET OPEN TRUCK
ENGINE
Deplacement: 5759
Max Out put: 160HP @ 2400rpm
Max. torque: 550nm @ 1600rpm
Sump capacity 16 ltr
Air Filter: Dry type
FUEL Filter: Diesel Filter cum water seperatar on the pressure side, strainer on the feed pump suction side.
FUEL tank capacity(Lts) Cooling Type : 239 ltr
Pump circulated, pressurized cooling, thermostat controlled
Cooling water capacity: 22
Radiator frontal area (sq cm) : 3579
CLUTCH: Single plate dry type 14”
GEAR BOX : 6-speed synchromesh, FGR 8.28:1
REAR AXLE : Fully floating single speed hypoid
AXLE CAPACITY-kgs : 10,200
AXLE RATIO : 6.167:1
FRONT AXLE : Forges Section Reverse Elliot Type.
Capacity (kgs): 6000
FRAME: All steel ladder type bolted construction.
SPRINGS : Semi elliptical laminated multileaf with centre bolt arrangement.
SHOCK ABSORBER: Double acting, telescopic type on front axle only.
STEERING: Integral Power steering.
WHEELS & TYRES: 2 Nos in Front and 4 Nos in rear.
1 no in spare
TYRES : FRONT 10.00x20-16 Nylon
REAR
10.00X20-16 PR PD Nylon
SPARE
1no. 10.00x20-16 PR Nylon
BREAKES: Air pressure diaphragm operated with dual line ;S’ cam arrangement.
Parking brake: Flick valve operated pneumatic hand brake on rear wheel only.
ELECTRICAL SYSTEM : 24V Negative earth.
Batteries : 110amp hr. (20hr.rating)
BATTERIES: 2x12V, 80AMP Hr
FRONT END STRUCTURE type: Pressed steeel G45 mk III
CABIN : Factory built tiltable cargo sleeper cabin.
PERFORMANCE DATA : Max speed (Kmph) : 97 kmph.
Max gradeability (deg) : 25.73
WEIGHT (kgs) : Front axle : Unladen 2995/2995 Laden 6000
Rear Axle Unladen 1860/1950 Laden 10200
Total Unladen : 4855/4945 Laden 16200
SUSPENSION : Front : Double wishbone, Transverse Leaf Spring
Rear : Parabolic Leaf Spring, 2 Stages, Overslung
MAJOR DIMENSIONS (mm) : Wheel base 4700/5334
Front overhang 1390/1468
Rear overhang : 2080/2667
Overall length : 8170/9469
Overall width:
2420/2432
Front track : 1978
Rear track : 1816
Frame width (rear) : 864
Laden height : 1000
Minimum ground clearance : 253
Turning circle diameter 9430/9225
Registration, Cash, Installment & Loan Facility
চেসিসনগদমূল্যেবিশেষছাড়।
সুদেস্বল্পডাউনপেমেন্টে৫বছর/৬০মাসকিস্তিএছাড়াও
দ্রুতরেজিষ্ট্রেশনসুবিধাএবংফ্রিসাভিসওয়ারেন্টিরয়েছে।
দেশব্যাপিআমাদেরসার্ভিসসেন্টারআছে।
যোগাযোগ(০১৭১৫-১৭৪৭৯৮/ 01796-940928) করুন, চেসিস সম্পর্কে আরো বেশি জানতে চাইলে, ধন্যবাদ।
****কিস্তিফেইল / ধরাগাড়িনেই। **** ****কিস্তিফেইল / ধরাগাড়িনেই। ****
