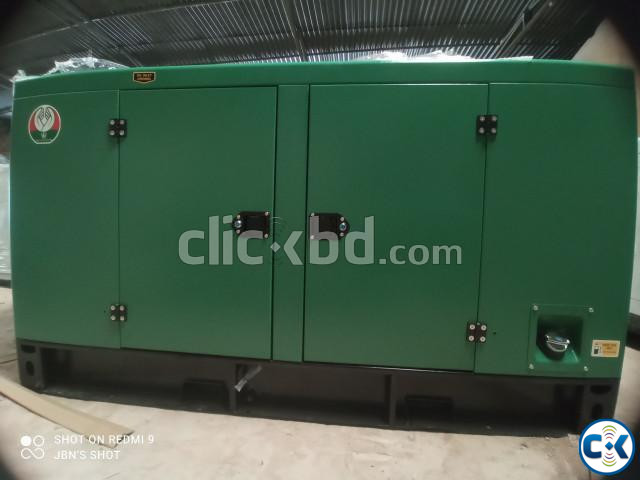

New 40 KW / 50 KVA Ricardo Canopy Type Diesel Generator
Brand : LW (European Standard)
Engine : Ricardo
Engine Model : 4105ZD
Rated Power : 50 KVA / 40 KW
Standby Power : 56 KVA / 44 KW
Alternator : STM (Brushless)
Controller : SmartGen [Full Digital]
Output Voltage : 220-400
Frequency : 50 Hz
Speed : 1500 rpm
Power Factor : 0.8
Fuel Consumption : 5 L/hr.
Origin : China.
01. Robber Mount- 01 set.
02. Battery- 01 set.
03. Installation, Testing and Commissioning.
PAYMENT TERMS : 100% Cash/Cheque/pay order with confirm work order.
DELIVERY: From Ready Stock.
Our package includes installation and commissioning of the Generator including load balancing for the premises where the generator is being installed.
But does not including any cost of civil & electrical works which may be required for the installation of the generator. Free of cost within Dhaka City excluding materials (cable, pipes, Ear thing, civil work etc) which is mandatory to generator installation.
Goods are warranted by the manufacturer for the period of 12 (Twelve) months from the date of operation & any manufacturing faults or defects in its components which may be lead disturbance of the generator set will be replaced free of charge by the manufacturer without any cost of your account. But if any type of major accident happens to the generator during the warranty period because of the client’s ignorance then the full liability should goes up on the client
SCOPE OF SUPPLY :
General : 4 Cylinder, Inline, 4-stroke Engine directly Coupled to a brush less , 4 pole Copy Stamford Alternator.
Set mounted Radiator to cool the engine for an ambient temperature upto 50°C.
Base Mounted Fuel Tank with fuel level indicator, drain plug, fuel feed and return line for the operation of approximately 8 hours.
12 V Dry charged lead acid battery, battery cables with connector, base mounted battery rack, belt driven battery charging dynamo.
Cartridge type fuel filter, full flow oil filter, Air Cleaner with replaceable paper filter cartridge.
Gear driven water and oil pump, oil cooler.
Gear driven fuel pump, fuel lifting pump.
Silencer box, Flexible below, Joint flange with bolt will be supplied loose.
Set mounted control panel.
Set mounted MCCB with connector.
Generator Installation and maintenance manual, Engine maintenance manual, Alternator Installation and Maintenance Manual.
We are Importer & Wholesaler. Our Ready Stock
@ Cummins 50 Kva to 275 Kva Open & Canopy,
@ Lovol 30 Kva to 150 Kva all Canopy,
@ Ricardo 20 Kva to 313 Kva Open & Canopy,
@ Shangchai 375 Kva to 650 Kva,
@ Lw 5 Kva to 14 Kva,
@ Petrol Generator 2 kw to 8 kw ].
Our contact Details:
Metro Power Technology
59/Kha, Maniknagor, Mugda, Dhaka-1203
