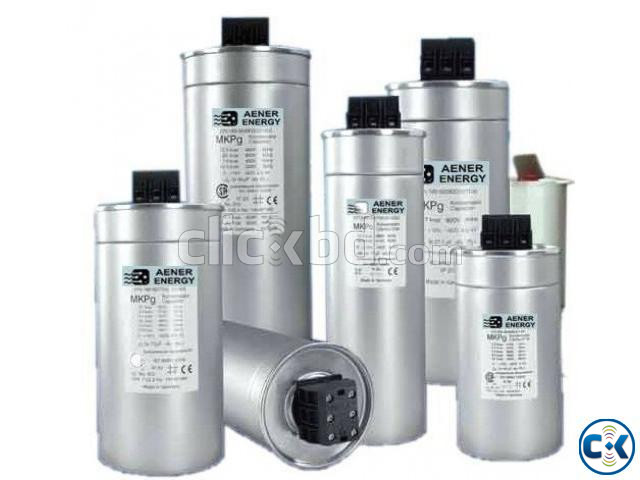

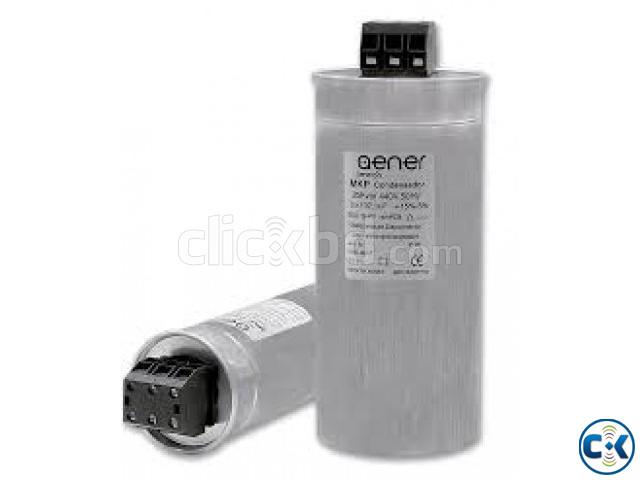

10 KVAR POWER CAPACITOR (BRAND: AENER, ORIGIN: SPAIN)

Brand: Aener, Origin: Spain

Manufacturer :AENER ENERGÍA S.L.U.

Calle Dehesa Vieja, 2 nave 8 ,E-28052 Madrid ,Spain

Agent In Bangladesh : Transpower Engineering Limited
Firoza Tower(3rd Floor), 42/A/2 Hatkhola Road,Dhaka-1203, Bangladesh

Cell: +8801944411236,+8801731684897

www.transpowerbd.com

Technical Specification : AENER´s capacitors fitted in our equipment’s are totally manufactured free of PCB and do not contain toxic substances. Our capacitors consist of a low-loss dielectric formed by pure polypropylene film.
AENER´s capacitors are totally protected against over voltage or ageing at the end of the capacitor’s useful service life.

TECHNICAL SPECIFICATIONS
Rated voltage: 440 V 50 Hz.
Maximum permissible current: 1,3 In.
Tolerance of capacitance: -5 +15%.
Dielectric losses: < 0> 120.000 h.
Temperature range inside the equipment: Max. 55°C / Min. -25°C
Construction technology: self-healing.
Internal connection: delta.
Discharge resistance: built-in.
Case type: cylindrical, aluminium.
Fixing system: bottom stud M12.
Conection: terminal block through screws.
Safety device: built-in.
