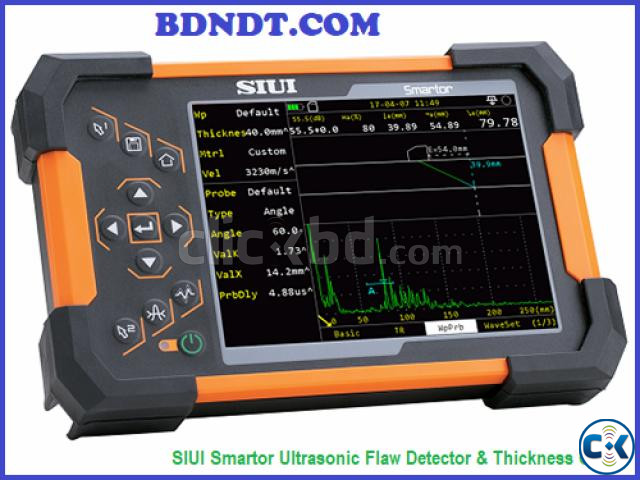

SIUI Smartor Ultrasonic Flaw Detector Price in BD

High IP rate: IP 66
Compact size: 198 (W)* 128 (H) *520 (D) mm
Light weight: 0.9kg only, including battery
5.7″ LCD with high resolution 640×480 pixels
Adjustable pulse width, negative square wave transmission is up to 350V
Operating frequency range: 0.5~20MHz, multiple steps of wide broadband and narrow-band for selection
Easy operation: only a few buttons, well-defined intuitive interface, support right-hand and left-hand operation, outdoor mode


SIUI Smartor Ultrasonic Flaw Detector & Thickness Gauge Price

Upgradeable



Flat Weld Simulation:

Up to 14 types of weld simulation, with dynamic beam tracking to visualize the flaw location.

Ultrasonic Weld Inspection:

Compact size: 198 (W)* 128 (H) *52 (L) mm
Light weight: 0.9kg only, including battery
5.7″ LCD with high resolution 640×480 pixels

Ultrasonic testing functions：

√ Standard: Weld/ plate/ forging test wizards, DAC, AVG/ DGS, AGC (Auto gain control), peak memory, video record, etc.
√ Optional: B-Scan, TCG, FFT (probe spectral analysis), CSC (curved surface correction), flat weld simulation, crack height measurement, BEA (backwall echo attenuator), AWS, API 5UE.
Ultrasonic thickness measurement functions：
√ Standard: A-scan thickness measurement (echo to echo mode, through coating measurement), auto-search, velocity measurement, alarm and dataset management.
√ Optional functions: CoatMode, B-Scan, multilayers, Vpath, TDG and temperature compensation.
