SMT1500RMI2UC] APC Smart-UPS 1500VA LCD RM 2U 230V with Smar

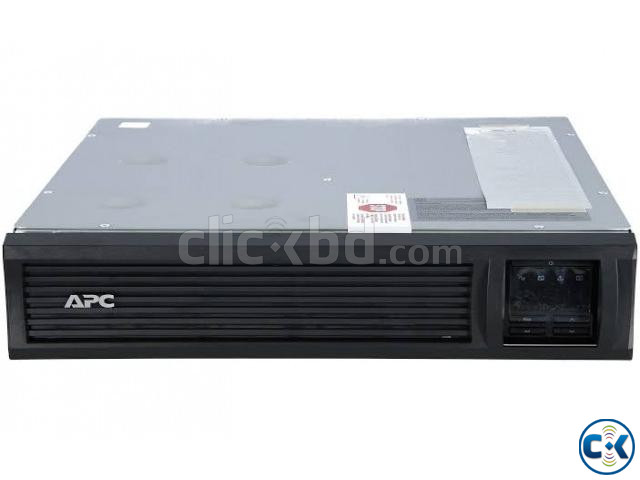

SMT1500RMI2UC] APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect.

Product Detail

Output

Output power capacity : 1.0kWatts / 1.5kVA

Max Configurable Power (Watts) : 1.0kWatts / 1.5kVA

Nominal Output Voltage : 230V

Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion : Less than 5%

Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz

Other Output Voltages : 220, 240

Topology : Line Interactive

Waveform type : Sine wave

Output Connections : (2) IEC Jumpers (Battery Backup), (4) IEC 320 C13 (Battery Backup)

Transfer Time : 6ms typical : 10ms maximum

Input

Nominal Input Voltage : 230V

Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections : IEC-320 C14

Input voltage range for main operations : 160 - 286V

Input voltage adjustable range for mains operation : 151 - 302V

Other Input Voltages : 220, 240

Batteries & Runtime

Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time : 3hour(s)

Replacement Battery : APCRBC133

Expected Battery Life (years) : 4 - 6

RBC Quantity : 1

Communications & Management

Interface Port(s) : RJ-45 Serial, SmartSlot, USB

Control panel : Multi-function LCD status and control console

Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO) : Optional

Available SmartSlot™ Interface Quantity : 1

Surge Protection and Filtering

Surge energy rating : 459Joules

Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height : 86MM, 8.6CM

Maximum Width : 432MM, 43.2CM

Maximum Depth : 477MM, 47.7CM

Rack Height : 2U

Net Weight : 28.64KG

Shipping weight : 31.91KG

Shipping Height : 251MM, 25.1CM

Shipping Width : 594MM, 59.4CM

Shipping Depth : 603MM, 60.3CM

Color : Black

Units per Pallet : 8.0

Environmental

Operating Temperature : 0 - 40 °C

Operating Relative Humidity : 0 - 95 %

Operating Elevation : 0-3000meters

Storage Temperature : -15 - 45 °C

Storage Relative Humidity : 0 - 95 %

Storage Elevation : 0-15000meters

Audible noise at 1 meter from surface of unit : 46.0dBA

Online thermal dissipation : 90.0BTU/hr
