    DESCRIPTION ( HTP-005 Button Snap Pull Test Machine )



    PRODUCT INTRODUCTION

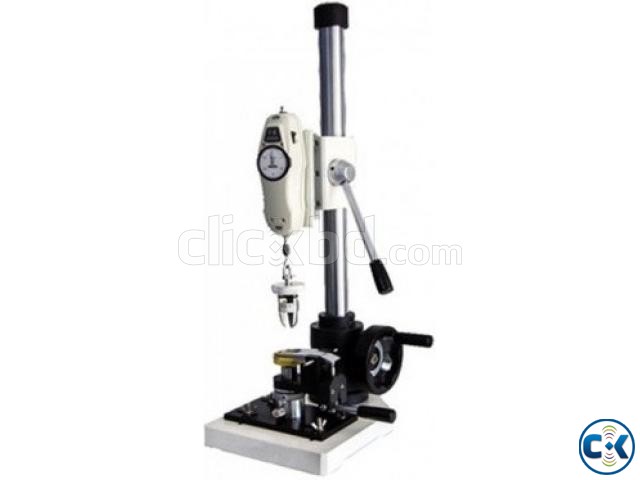

    Button Pull Test Machine is used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments. Consists of an Upper Snap Clamp, a Lower Fabric Clamp & Force Gauge mounted on a Stand. The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp.

    By turning the Top Flywheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded. Button Pull Test Machine used for measuring the responsibility of garment manufacturer to ensure button and firmware can be fixed on the ready-made garments properly, avoiding button drop from garment to brought danger to baby swallow. Used for testing the vertical orientation tension of button and added touch.





    STANDARD ELECTRODES & ACCESSORIES
    Upper Universal Clamp – 1 Piece

    Test for female part of snap and male part of stud.

    Upper Stud Clamp – 1 Piece

    Test for male part of baby snaps but generally Upper

    Three Pronged Clamp – 1 Piece

    Test for four-hole buttons and jeans buttons.

    Upper Grasp Button Clamp – 1 Piece

    Designed to gripping the grasp buttons or larger buttons e.g. Jeans or Plastic Button up to 30 liner

    Lower Fabric Clamp, Lever Arm Locking – 1 Piece

    Fix the sample with buttons firmly and constantly so that fabric slippage can be minimized.

    Upper Long Nose Vise Clamp – 1 Piece

    Mainly used for trouser hooks and other smaller accessories

    IMADA Push-Pull Scale FB 30kg – 1 Piece

    Display the reading of pulling force with capacity up to 30kg

    Calibration Weight 15 lbs – 1 Piece

    Routine checking the accuracy of the IMADA Force Gauge 15 Lbs = 6.82kg
