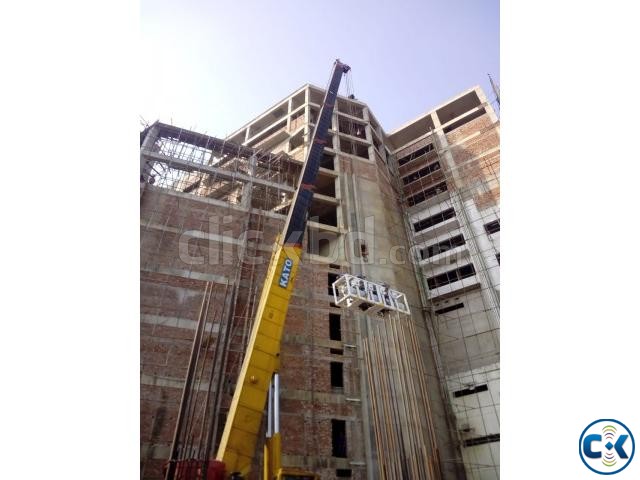

120 TON KATO CRANE RENTAL SERVICE

Specifications for 120T Kato NK-1200
Max. capacity: 120 t at 3.35 m Max. load moment: - tm
Axles: 6 Total weight: 71.8 t
Booms:
Telescopic boom: 13.6 - 50 m Boom sections: 5
Boom luffing up to: 82° in 76 seconds Boom telescoping: 13.6-50 m in 312 seconds
Super lift: - Intermediate sections: - m
Folding jib: 11/20 m off settable at angle 5/25/45°
Fixed jib: - m offset table at angle -° Luffing jib: - m
Main boom foot pin
horizontal offset X: - mm Main boom foot pin
vertical offset Y: - mm
Max. slewing speed: 1.9 rpm
Max. line speed: 102 m/min Max. line pull: - kN
Dimensions:
Total length: 16400 mm Tail swing: 4250 mm
Carrier length: - mm Width: 3000 mm
Overall Height – 4000 mm Wheel Base : 6200 mm
Outer turning radius: - mm Inner turning radius: - mm
Turning radius boom head: - mm Turning radius folding jib: - mm
Outrigger base: 6800 x 8000 mm Reduced outrigger base: - mm
Crawler track width: - mm Crawler plate width: - mm
Drives & Transmission:
Carrier engine: Detroit Diesel 8V92T Power/Weight-Ratio: 0.00 kW/t
Power: - kW / 430 PS Max. torque: - Nm 1400 rpm
Transmission: - Gears: 10+3 (Forward + reverse)
Max. speed: 65 km/h Gradeability: - %
Drive / Steering (standard): 12x6x8 Drive / Steering (option): -
Tyres (standard): 14.00-24 PR24 Tyres (option): -
Superstructure engine: Mitsubishi 8DC61C
Power: - kW / 254 PS Max. torque: - Nm at 1200 rpm
Counterweight:
Derrick mast: - m Radius A-frame: - mm
Max. counterweight: - t Central ballast (Crawler cranes): - t
