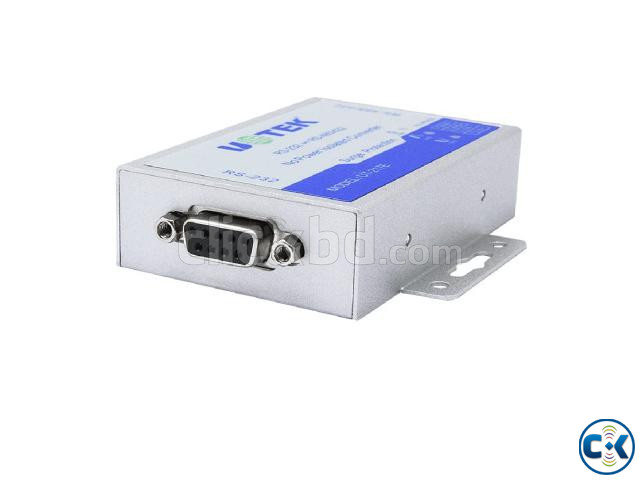

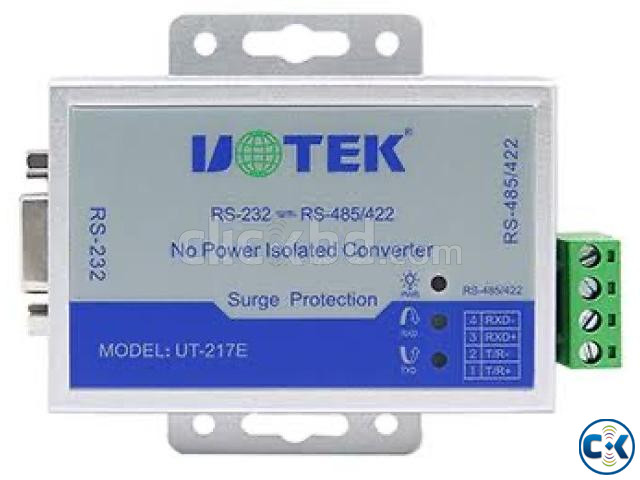

UTEK UT-217E Port-Powered RS-232 to RS-485/422 Isolation.

UTEK UT-217E Port-Powered RS-232 to RS-485/422 Wall-Mounted PhotoElectric Isolation.

Description

Standards: RS-232, RS-485 TIA/EIA ● Automatic data direction control, no need external flow control signal (RTS) ● Baudrate: 300ps-115.2kbps

Allows connecting 32 sets RS-485 or RS-422 device ● Transmission Distance: 1,200m (9,600bps) ● Power & data flow indicator, failure detection

Working mode: asynchronous half-duplex (RS-485) or full-duplex (RS-422) ● Isolate voltage: 2.5KVrms/500VDC insulative isolation; ● RS-485/422 provides with 600W lightning protection each line

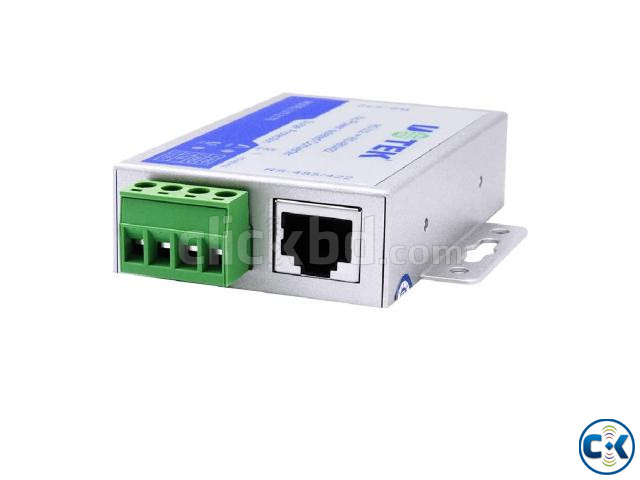

Connector: RS-232 DB9 female; RS-485/422 4 bits terminal block & RJ-45 ● Transmission media: twisted-pair or shielded cable ● Dimension: 79mm×74mm×22mm

Operating temperature: -25℃ to 70℃ ● Relative humidity: 5% to 95% ● Works with all communication software, plug & play ● Supports all operating system
