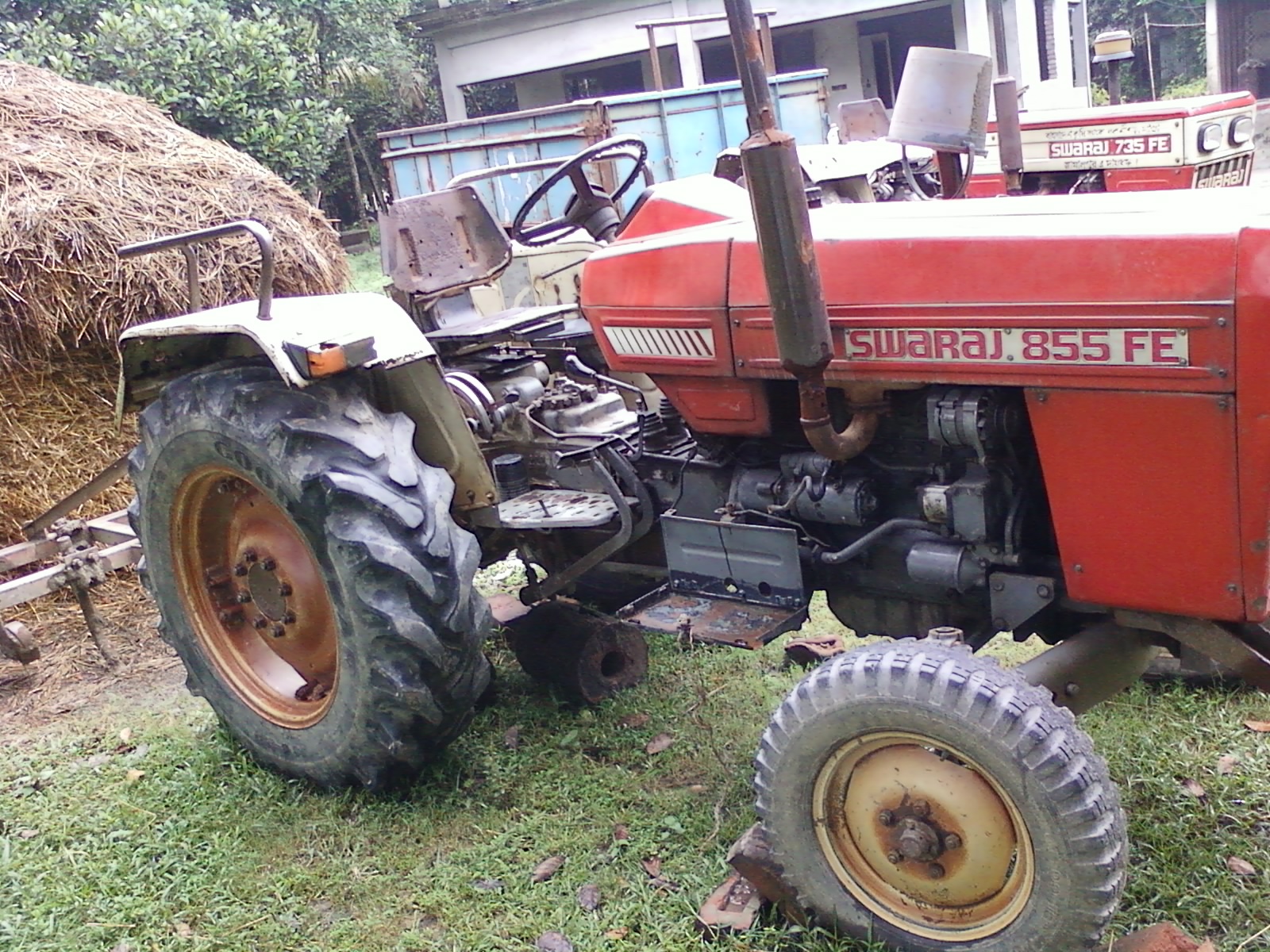

Tractor "Swaraj 855"

Swaraj 855

Swaraj 855 is a 4 stroke, direct injection diesel engined tractor ideal for paddy cultivation and suitable for drilling operations with Compressor. This is a 3308cc tractor with 8 forward and 2 reverse speed gears with high and low selector levels.

Swaraj 855 has a self energizing, water sealed disc brakes with parking brake for extra safety and also has an option of an oil immersed disc brake. The tractor is equipped with a single drop arm steering along with an option of a power steering.

Featured Components
• Tractor meter with direction indicators
• Fuel gauge
• Ammeter
• Water temperature gauge
• Oil pressure gauge
• Lockable battery near starter
• Higher capacity diesel tank of 60 liters
Specifications
Engine Type 4 - Stroke, Direct Injection, Diesel Engine
No. of Cylinders: 3
No. of Cylinders: 100 X 116 mm
Displacement: 3308 cc
Rated Engine Speed: 2000 rev/min
Air Cleaner: 3 Stage dry type air cleaning system comprising of Swaraj Turbo Pre cleaner, Dust unloader, main paper filter element and safety cartridge to enhance engine life.
Cooling System: Water Cooled with Oil Cooler for engine oil.
Clutch: Heavy Duty single dry plate type, 305 mm dia Dual Clutch, 280 mm dia (optional)
No. of Gears: 8 forward, 2 reverse speeds with high and low selector levels.
Brakes Heavy Duty Self energizing, water sealed disc brakes with parking brake for additional safety.
Steering Heavy Duty single drop arm steering for high efficiency and comfortable drive.
O.A. Length 3420 mm
O.A. Width 1715 mm
O.A. Height 2275 mm
Wheel Base 1950 mm
Min. Ground Clearance 400 mm
Weight of Tractor 1980 kg
