HYUNDAI-GEN

HYUNDAI BRAND DIESEL GENERATOR
5KW & 10KW

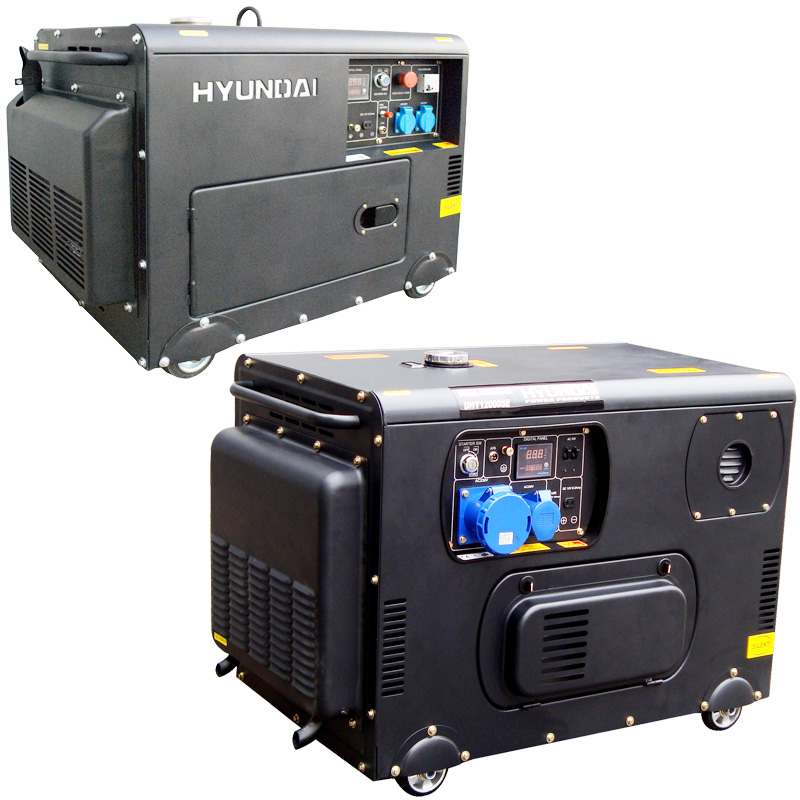

HYUNDAI Series Diesel Generator Set

1. Genset Model : DG7500SE-3

2. HYUNDAI Engine Model : HYD500E

3. Prime Output : 5 KW / 6.25 KVA

4. Standby Output : 5.5 KW / 6.87 KVA

5. Fuel Consumption : 3.1 Ltr. per Hour

ENGINE SPECIFICATION
Engine Model HYD500E
Number of Cylinders Single
Engine Type Vertical, AIR-cooled,direct-injection
Cycle/engine Four stroke
Starting Electric starting
Total Displacement of the pistons 430 CC
Oil Capacity (ltr) 1.65
Fuel Tank Capacity (ltr) 15
Cooling Forced air-cooled
Max power output/rpm 3000 rpm



HYUNDAI Series Diesel Generator Set

1. Genset Model : DG12000SE-3

2. HYUNDAI Engine Model : HYD840E

3. Prime Output : 9 KW / 11.25 KVA

4. Standby Output : 10 KW / 12.5 KVA

5. Fuel Consumption : 4.15 Ltr. per Hour

ENGINE SPECIFICATION
Engine Model HYD840E
Number of Cylinders TWO
Engine Type Vertical, AIR-cooled,direct-injection
Cycle/engine Four stroke
Starting Electric starting
Total Displacement of the pistons 840 CC
Oil Capacity (ltr) 1.7
Fuel Tank Capacity (ltr) 28
Cooling Forced air-cooled
Max power output/rpm 3000 rpm
