Description
DESCRIPTION for REVOLT 3.2kVA Hybrid Solar Inverter IPS price in Bangladesh
|

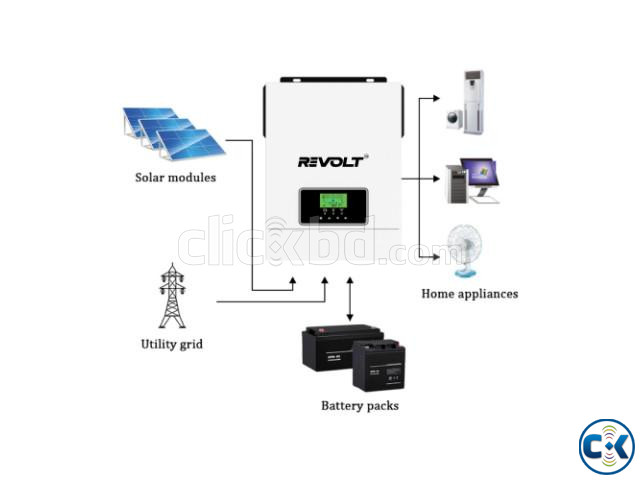

Item: Solar IPS Model: NML-3200-24V Description: The REVOLT NML-3200-24V Hybrid Solar Inverter is a power conversion tool that can combine the functions of a solar inverter and a battery inverter into one single unit. It can easily operate in both grid-connected and standalone modes. Also, it has a wide AC input voltage range (90- 280V) for stable operation, compatible with a 24V battery system, MPPT range up to 30- 450V for enhanced solar efficiency, as well as overload, over-temperature, and short-circuit protection. Specifications: - Pure Sine Wave Inverter - Configurable Solar or Grid priority - Wide AC input voltage range (90- 280V) for stable operation - Compatible with grid or generator - Compatible with 24V battery system (Lead Acid / Lithium) - Configurable battery charging current (10A-80A) - Configurable AC/Solar charging priority - MPPT range: 30-450V for enhanced solar efficiency - Cold start function - Overload / over-temperature / short-circuit protection - AC Input - Voltage: 230VAC - Selectable Voltage Range - 170-280VAC(Personal Computer) - 90-280VAC(Home Appliances) - Frequency Range: 50Hz/60Hz(Auto Sensing) - Battery & AC Charger - Battery Voltage: 24VDC - Floating Charge Voltage: 27VDC - Overcharge Protection: 33VDC - Maximum AC Charge Current: 60A - Solar Charger - Maximum PV Array Power: 3000W - MPPT Range at Operating Voltage: 30- 450VDC - Maximum PV Array Open Circuit Voltage: 4500VDC - Maximum Charge Current: 80A - AC Output - AC Voltage Resolution: 230VAC+_5% Surge Power: 6400VA - Efficiency(Peak)PV to INV: 98% - Efficiency(Peak)Battery to INV: 94% - Transfer Time: 10ms(For personal computer), 20ms(For home appliances) - Operating Environment - Humidity: 5% to 95% Relative Humidity(Non-condensing) - Operating Temperature: -10 to 50 degree Celsius - Physical - Dimension: 357 x 273 x 95mm - Net Weight: 5 Kg - Communicating Interface: RS232 Regiment Engineering Limited ঠিকানা: ৫৭৯/৯ ও পি. এল আইয়ুব সেন্টার, মিরপুর ডিওএইচএস রোড, ঢাকা-১২০৬ সারা দেশে দ্রুত ডেলিভারি আমরা এস.এ. পরিবহনের মাধ্যমে বাংলাদেশের যেকোনো প্রান্তে দ্রুত পণ্য পৌঁছে দিই। পরিবহন খরচ অগ্রিম পরিশোধযোগ্য, তবে পণ্য হাতে পাওয়ার পর বাকী মূল্য কন্ডিশন সিস্টেমে সহজে পরিশোধ করতে পারবেন। ক্যাশ অন ডেলিভারি সুবিধা রয়েছে। সীমিত স্টক – এখনই অর্ডার করুন! |
