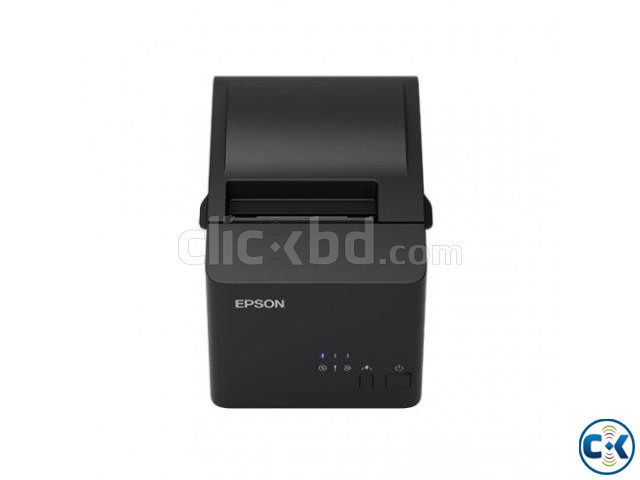

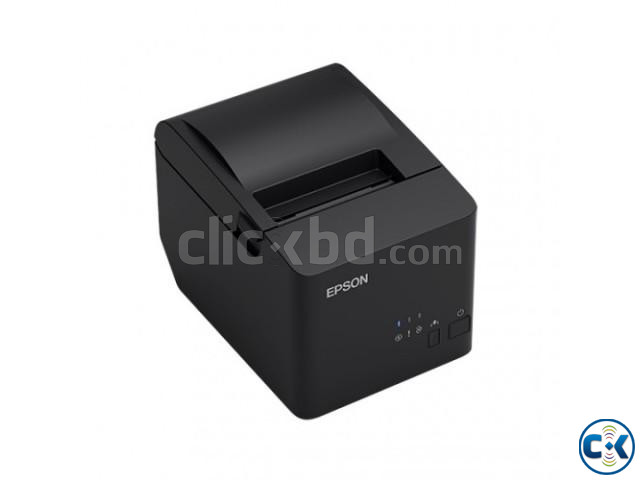

Epson TM-T81III POS Printer

MODEL NAME TM-T81
Print Method Thermal line printing
PRINT FONT Font A: 12 × 24 / Font B: 9 × 17
COLUMN CAPACITY (columns) Font A: 42 / Font B: 56
CHARACTER SIZE (mm) Font A: 1.41 (W) × 3.39 (H) / Font B: 0.99 (W) × 2.40 (H)
CHARACTER SET Chaina model: 95 Alphanumeric, 48set International, 128 × 11 Graphic
Bar code : UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128
Two-dimensional code : PDF417, QRCode
INTERFACES RS-232, 1284 Bi-directional parallel, USB, Ethernet(10/100 Base-T)
RECEIVE DATA BUFFER 4 KB or 45 bytes
PRINT SPEED Max. 150 mm/sec
PAPER DIMENSIONS (mm) Roll paper: 79.5 ± 0.5 (W) × dia. 83.0
POWER 24 VDC ± 7%
POWER CONSUMPTION 1.5 A (Approx.)
POWER SUPPLY External power supply (Model: PS-180) included
D.K.D. FUNCTION 2 drives
Reliability
PRINTER MECHANISM LIFE 15 million lines
AUTO CUTTER LIFE 1.5 million cuts
MTBF 360,000 hours
MCBF 52,000,000 lines
EMC STANDARDS AS/NZS CISPR 22 Class B
STANDARD ACCESSORIES Roll paper × 1 roll(for checking the initial movement of the printer), Power switch cover, External power supply(Model: PS-180), Locking wire saddle (USB model only)
OVERALL DIMENSIONS 144mm (W) x 189mm (D) x 145mm (H)
WEIGHT 1.7Kg
