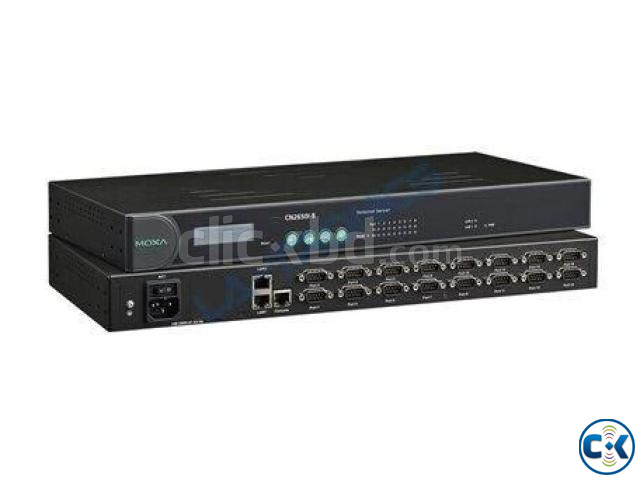

USED MOXA CN2650i-16 Dual-LAN Terminal Server with 16 RS-232

USED MOXA CN2650i-16 Dual-LAN Terminal Server with 16 RS-232/422/485 Ports and 2 kV Optical Isolation, 0 to 55°C Operating temperate.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

2

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Configuration Options

Serial Console, Telnet Console, Device Search Utility (DSU), Windows Utility, Web Console (HTTP/HTTPS)

Management

ARP, BOOTP, DDNS, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SLIP

MIB

MIB-II

Security

HTTPS/SSL, RADIUS, SSH, PAP, CHAP

Unicast Routing

RIPV1/V2, Static Route

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Android API

Android 3.1.x and later

Serial Interface

Connector

8-pin RJ45

No. of Ports

16

Serial Standards

RS-232, RS-422, RS-485

Operation Modes

Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM mode, Disabled

Baudrate

50 bps to 921.6 kbps

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, RTS/CTS, DTR/DSR, XON/XOFF

Isolation

2 kV

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

120 ohms

Console Port

RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

No. of Power Inputs

1

Input Current

130 mA @ 110 VAC

Input Voltage

100 to 240 VAC (47 to 63 Hz)

Reliability

Automatic Reboot Trigger

Built-in WDT

Alert Tools

Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing

Metal

Installation

19-inch rack mounting

Dimensions (with ears)

480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)

Dimensions (without ears)

440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in)

Weight

3,776 g (8.32 lb)
