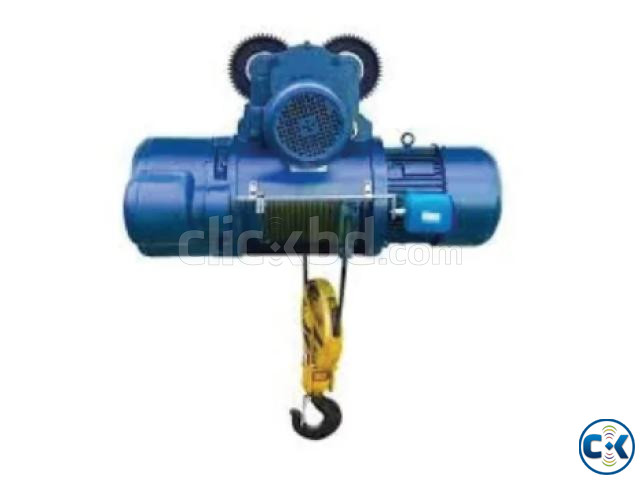

3 Ton Electric Wire Rope Hoist with trolley

SUJA GLOBAL 3 Ton Electric Wire Rope Hoist with trolley (SGRH-3T) is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc. The lifting capacity of a single-speed electric wire rope hoist is 3 tons and the working class is M3.

This is a single-speed, electric hoist. Wire rope electric hoist is the most common lifting equipment, which can be installed on a single girder overhead crane or single beam gantry crane. With different design principles and using environments, small electric hoist remote control has two kinds of types, which are traveling hoist and stationary hoist. Generally speaking, an electric hoist has pendent control and wireless control.

• Lifting Capacity (T) 3 TON.
• Lifting Height (m) 8 Meters.
• Lifting Speed (m/min) 8.
• Running Speed (m/min) 20/30.
• Wire Rope Type 6×37+1.
• I-Beam Track Model 16-28b.
• Working Duty M3.
• Lifting Height Power(kw) 4.5.
• Lifting Height R.P.M(r/min) 1380.
• Lifting Height Power supply 220-440v 50/60hz 3phase.
• Running Motor Power (kw) 0.4.
• Running Motor R.P.M(r/min) 1380.
• Running Motor Power supply 220-440v 50/60hz 3phase.
• Weight 353 kg.
• Certification CE, ISO.
