Coating Thickness Gauge in Bangladesh Brand New

Asking Price:
Tk. 20,000


Seller:
Member since 13 Oct 2020
Location:
Mirpur, Dhaka
Payment:
Face-to-face transaction
Return:
Not offered
Do not pay before verifying

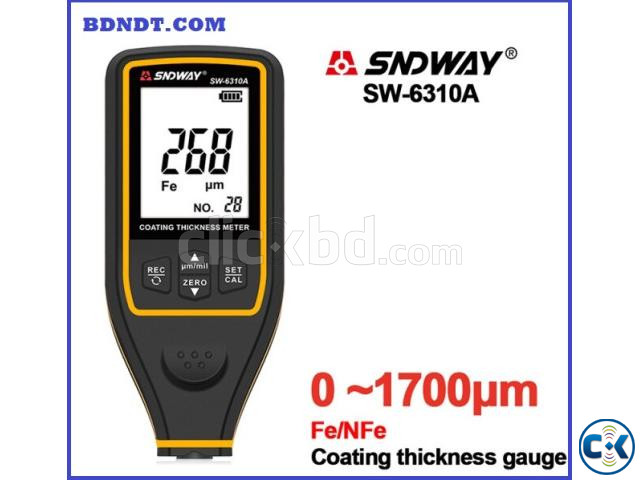

  • Brand: SNDWAY
  • Model: SW-6310A
Category: Electronics > Gadgets & Devices > > > Coating Thickness Gauge in Bangladesh

DESCRIPTION ( Coating Thickness Gauge in Bangladesh )

Specifications:
Material: ABS plastic
Sensor Probe Type: Fe / NFe
Working Principle: Magnetic Induction(Fe) / Eddy Current(NFe)
Range: Magnetic material 0~1700μm; Non magnetic material 0~1700μm
Units: μm, mil(1mil=25.4μm, 1μm=0.03937mil)
Accuracy: ±(2+2%*H)μm @ (0~500μm), ±(2.5%*H)μm @ (500~1700μm)
Resolution: 0.1μm(0-99.9μm), 1μm(100-1700μm)
Minimum Curvature Radius: Convex 5mm, Concave 30mm
Minimum Measuring Area: Magnetic material 25×25mm; Non magnetic material 25×25mm
Minimum Thickness of Substrate: Magnetic 0.2mm, Non-magnetic 0.05mm
Data Storage: 30 Groups
Screen: 2.0 inches large segment screen
The Screen Rotation: 180 degree screen flip
Basic Measurement: Single /Continuous measurement

Calibration: Zero-spot calibration/Calibration-film calibration
Limiting Value Measurement: Yes
Memory/Delete Record: Yes
Operating Conditions: 0℃~50℃(10%~80%RH)
Storage Conditions: -10℃~60℃(10%~70%RH)
Power Supply: 2 * 1.5V AAA Batteries(NOT included)
Storage Case Size: 215 * 165 * 47mm / 8.46 * 6.49 * 1.85in
Item Size: Approx. 120 * 52 * 26mm / 4.73 * 2.05 * 1.03in
Item Weight: Approx. 82g / 2.89oz
Package Weight: Approx. 468g / 16.52oz
Package Size: Approx. 23.3 * 17.5 * 5cm / 9.18 * 6.89 * 1.97in
