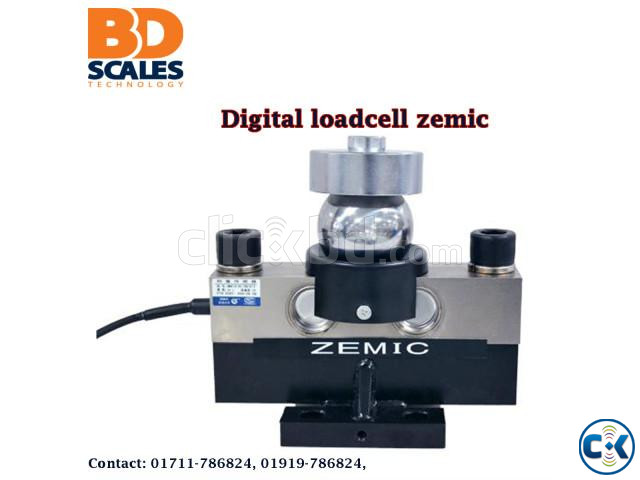

Zemic 40 ton HM9B load cell for truck scale

Tk 24,599
Sold
Seller info
Sold by:
BDScalesTechnology
Member since:
11 Jul 2016
Location:
Dhaka Motijheel
Safety tips:
Don’t pay in advance
Meet in a safe & public place
Description

DESCRIPTION for Zemic 40 ton HM9B load cell for truck scale price in Bangladesh

Zemic Suiioble for Dusl & water proven (lP 65)2mv/v

Zemic 40 ton HM9B load cell for truck scale
Overview
Specifications
Place of Origin: China (Mainland)
Brand Name: Zemic
Model Number: HM9B
Usage: Consumption Sensor
Theory: Resistance Sensor
Output: Analog Sensor
iterm: Zemic 40 ton HM9B load cell for truck scale Packaging & Delivery
Packaging Details: OIML weighing scale parts load cell price package :cartons and pallet
Delivery Detail: 15 working days since the payment
Zemic 40 ton HM9B load cell for truck scale

Products specification

1.HM9B load cell are available in the capacities 10t to 50t.
2.Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

The heart of any weighing system is the load cell. A load cell is an electrical instrument which is used to convert a mechanical force into an electrical output signal. The terminology for load cells can be found in the OIML R60 regulation for load cells.

Load cells are highly accurate trans­ducers which pro­vides the user with informa­tion not generally obtainable by other technology due to commercial fac­tors. Load cells are designed to sense force or weight under a wide range of adverse condi­tions. They are not only the most essen­tial part of an elec­tronic weighing system, but also the most vulnerable. In order to get the most bene­fit from the load cell, the user must have a thor­ough understanding of the technology, con­struction and oper­ation of this unique device. In addition, it is imperative that the user selects the cor­rect load cell for the appli­cation and pro­vide the necessary care for the load cell during its lifetime.

Understanding these important issues and pro­perly maintaining the load cells will ensure trou­ble-free weighing for a long period of time.

OIML shear beam load cell Specifications

Capacity
t

10/20/25/30/40SE/40/50

Accuracy
C1

C2

C3

A5M

B10M

Approvals
OIML R60 C3
Maximum number of
verification intervals
n max

1000

2000

3000

5000

10000

Minimum load cell
verification interval
v min

Emax/3000

Emax/5000

Emax/7500

Emax
/15000

Emax
/10000

Combined error

(%FS)

≤±0.050

≤±0.030

≤±0.020

≤±0.026

≤±0.050

Creep

(%FS/30min)

≤±0.038

≤±0.024

≤±0.016

≤±0.017

≤±0.040

Temperature effect
on sensitivity

(%FS/10℃)

≤±0.028

≤±0.017

≤±0.011

≤±0.013

≤±0.040

Temperature effect
on zero

(%FS/10℃)

≤±0.047

≤±0.023

≤±0.015

≤±0.014

≤±0.020

Output sensitivity

(mv/v)

2.0±0.002

2.3±0.002
2.4±0.002
1.9±0.002
1.8±0.002
Input resistance

(Ω)

700 ±7

775 ±5 750 ±7
Output resistance

(Ω)

700 ±7

Insulation resistance

(MΩ)

≥ 5000(50VDC)

Zero balance

(%FS)

1.5

Temperature, compensated

(℃)

-10~+40

Temperature,allowed

(℃)

-35~+65

Excitation, Recommended

(V)

5~12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300
