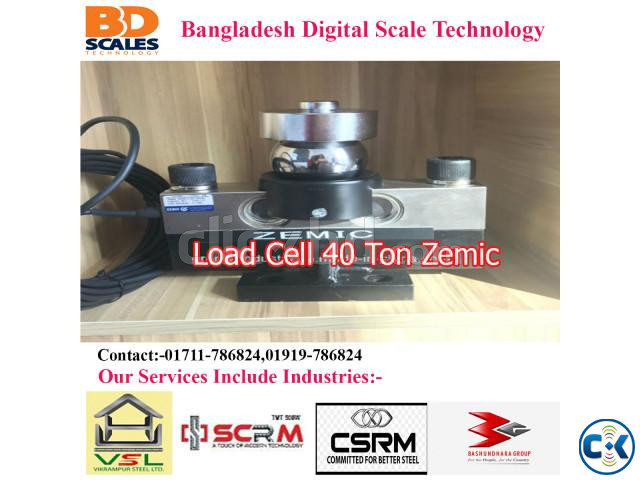

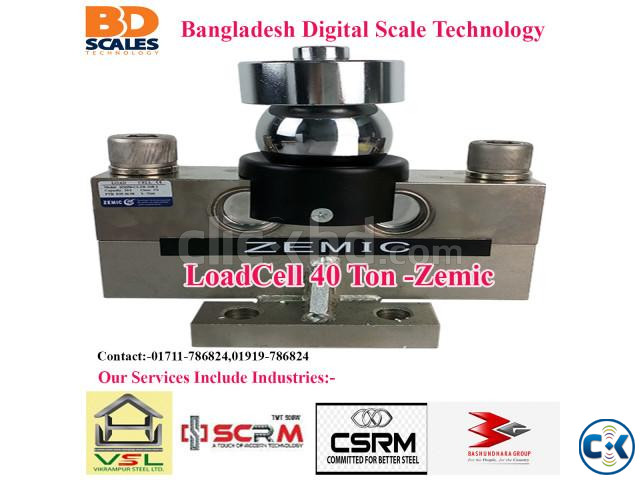

Load Cell 40 Ton Zemic

Description
Zemic 40 ton HM9B load cell for truck scale

Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Zemic
Model Number:
HM9B
Usage:
Consumption Sensor
Theory:
Resistance Sensor
Output:
Analog Sensor
iterm:
Zemic 40 ton HM9B load cell for truck scale




Products specification

1.HM9B load cell are available in the capacities 10t to 50t.
2.Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.


OIML shear beam load cell Specifications
Capacity t 10/20/25/30/40SE/40/50
Accuracy C1 C2 C3 A5M B10M
Approvals OIML R60 C3
Maximum number of
verification intervals n max 1000 2000 3000 5000 10000
Minimum load cell
verification interval v min Emax/3000 Emax/5000 Emax/7500 Emax
/15000 Emax
/10000
Combined error (%FS) ≤±0.050 ≤±0.030 ≤±0.020 ≤±0.026 ≤±0.050
Creep (%FS/30min) ≤±0.038 ≤±0.024 ≤±0.016 ≤±0.017 ≤±0.040
Temperature effect
on sensitivity (%FS/10℃) ≤±0.028 ≤±0.017 ≤±0.011 ≤±0.013 ≤±0.040
Temperature effect
on zero (%FS/10℃) ≤±0.047
