86” Multi Touch All-In-One Interactive LED Smartboard in BD

BTECPRO BTA-86T ALLIN ONE INTERACTIVE INFRARED TOUCH SCREEN WHITEBOARD
Quick Detail:

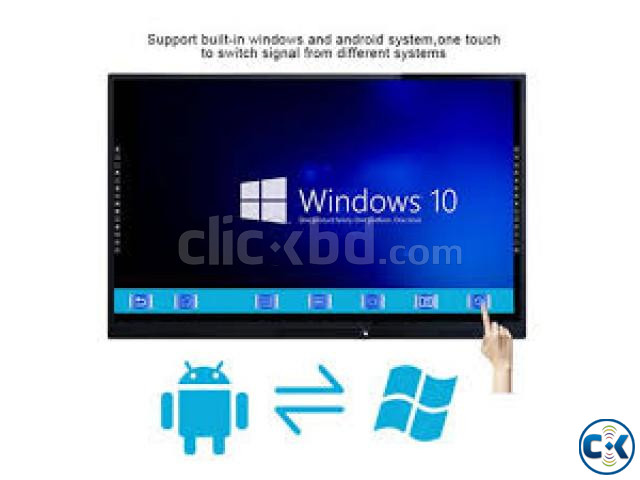

Equipped with dual OS Windows 10 and Android 9.0 intelligent operating system and unique 4K UI design, all interface UI resolutions are 4K ultra-high definition. 4-core 64-bit high-performance CPU. Easy to Screen Mirroring

SPECIFICATIONS
Display parameters

Screen size: 43" / 55" / 65" / 75" / 86" / 110 inch
Resolution: 3840 x 2160 (4K UHD)
Backlight type: DLED
Ratio of screen: 16 : 9
brightness: 550cd/㎡
Zoom: 16:9
Effective display area: 1895.04(H)×1065.96V) (mm)
View angle: 178°/ 178°/ 178°/ 178°/178°
Contrast: 4000:1

Machine parameters

Video format: BMP/JPG/GIF
Sound system: MP3/WMA
Sound output power: BMP/JPG/GIF
Machine power: ≤500W
Standby power consumption: ≤0.5W
Machine life: 70000 hours
input power : 100-240V, 50/60Hz
Overall size: 1953.3(L) x 1151.42(H) x 93.0(D) mm and 1953.3(L) x 1151.42(H) x 126.6(D) mm (including hanger)
net weight : 67KG
input port: Front port: USB2.0*1, USB3.0*1, HDMI IN*1, USB TOUCH*1 and Rear port: HDMI*2, USB*2, RS232*1, RJ45*1, VGA*1, AUDIO*1
output port: LineOut*1, COAX*1, (optional HDMIout)
WIFI: 2.4+5G (Bluetooth None)

Android System Parameters

CPU: RK3399 GPU: Mali-G52
RAM: 8GB
FLASH:32G EMMC
Android version: Android 9.0
OSD language: Chinese English

OPS Computer Parameters

CPU: i3/ i5/ i7 optional
Memory: 4G/8G/16G optional
Solid State Drive (SSD): 128G/256G/512G optional
operating system: Windows10
interface: Depends on motherboard specifications
WIFI: 802.11 b/g/n support

Touch box parameters

touch type: Infrared touch
Installation method: Built-in front disassembly
Touch screen sensing method: Fingers, writing pens, or other non-transparent objects ≥ Ø8mm
Resolution: 32767*32767
Touch system communication port: USB 2.0
responding speed: ≤3ms
positioning accuracy: ≤±2mm
multi-touch: 20 touches



Appearance and smart touch:

-- Easy to share screen of Laptop and Mobile
-- Ultra-narrow three-sided 12mm frame design, frosted appearance
-- Front detachable high-precision infrared touch frame, support 20-point touch, high sensitivity.
-- With OPS interface, dual Operating system
-- The front interface is rich, USB interface, HDMI interface, USB TOUCH interface are all available.
-- Support full-channel touch, automatic switching of touch channels, gesture recognition.
-- Speaker front, with digital audio output
-- Intelligent control, the remote control integrates computer shortcut keys, intelligent eye protection, and one-key switch machine.
